Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Door Lock / Door Control Transmitter (w/ Smart Key System) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

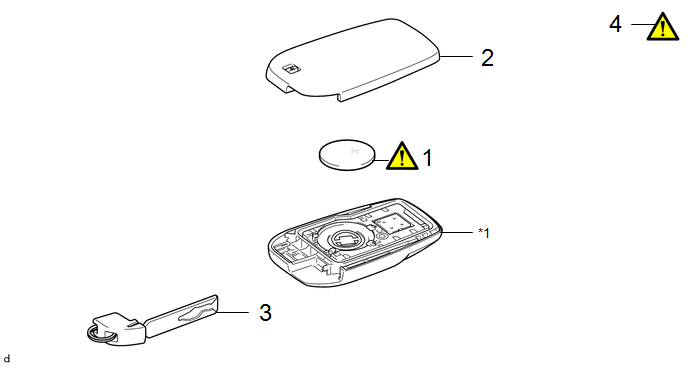

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMITTER BATTERY

89745C

-

-

2

TRANSMITTER HOUSING COVER

-

-

-

-

3

CUT KEY

69503B

-

-

-

4

INSPECT TRANSMITTER LED ILLUMINATION

-

-

-

*1

TRANSMITTER HOUSING CASE

-

-

PROCEDURE

1. INSTALL TRANSMITTER BATTERY

Click here

2. INSTALL TRANSMITTER HOUSING COVER

3. INSTALL CUT KEY

4. INSPECT TRANSMITTER LED ILLUMINATION

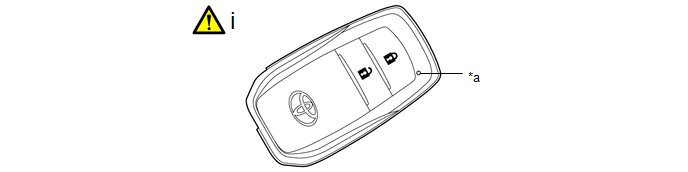

*a

LED

-

-

(1) Press one of the transmitter switches and check that the LED illuminates.

OK:

Transmitter LED illuminates when a switch is pressed.
