Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Bumper (except Sport Package) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

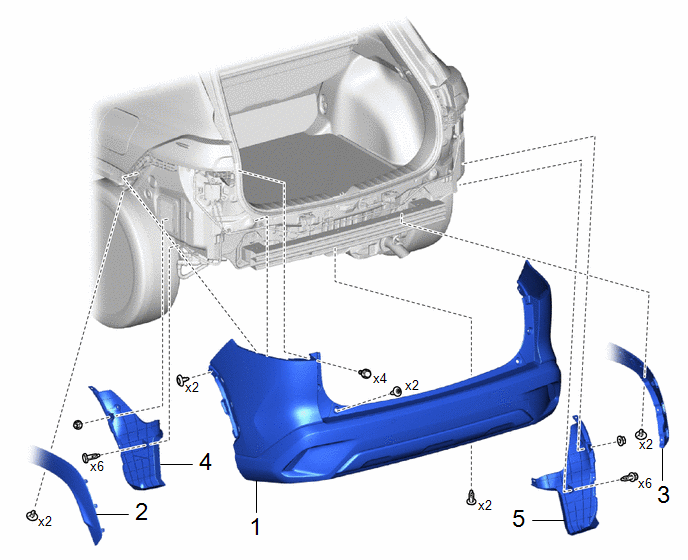

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR BUMPER ASSEMBLY

-

-

-

-

2

QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

75606B

-

-

-

3

QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

75605B

-

-

-

4

REAR BUMPER SIDE SEAL LH

52592

-

-

-

5

REAR BUMPER SIDE SEAL RH

52591

-

-

-

PROCEDURE

1. INSTALL REAR BUMPER ASSEMBLY

2. INSTALL QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

3. INSTALL QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

4. INSTALL REAR BUMPER SIDE SEAL LH

5. INSTALL REAR BUMPER SIDE SEAL RH
