Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

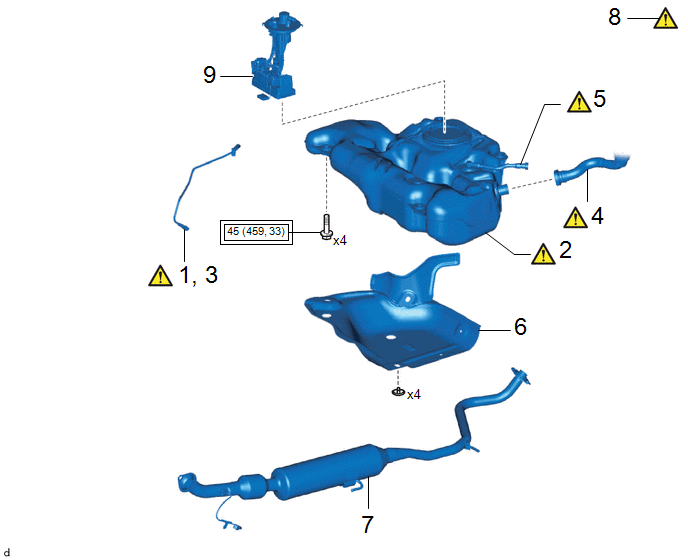

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

77209F

-

-

-

2

FUEL TANK ASSEMBLY

77100

-

-

3

CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

77209F

-

-

4

FUEL TANK TO FILLER PIPE HOSE

77210

-

-

5

FUEL TANK BREATHER TUBE

-

-

-

6

NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY

77641A

-

-

-

7

TAIL EXHAUST PIPE ASSEMBLY

17430

-

-

-

8

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

-

9

ADD FUEL

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

1. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY

2. INSTALL FUEL TANK ASSEMBLY

CAUTION:

The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the fuel tank assembly may fall off the engine lifter.

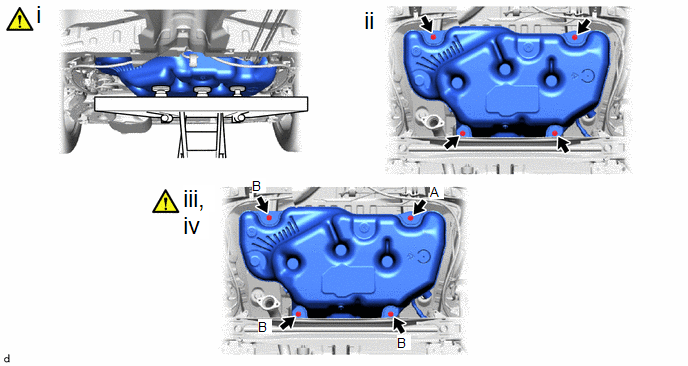

(1) Set the fuel tank assembly on an engine lifter.

NOTICE:

Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

(2) Using the engine lifter, slowly raise the fuel tank assembly, and then temporarily install the fuel tank assembly with the 4 bolts.

(3) Tighten the bolt (A).

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

NOTICE:

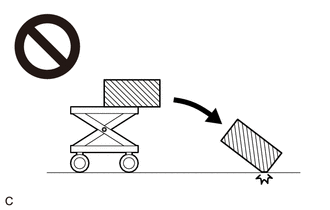

  • Be careful not to drop the fuel tank assembly.
  • When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

(4) Tighten the 3 bolts (B).

Torque:

45 N·m {459 kgf·cm, 33 ft·lbf}

NOTICE:

  • Be careful not to drop the fuel tank assembly.
  • When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

3. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

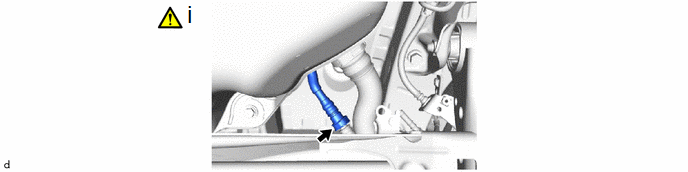

(1) Connect the fuel tank main tube sub-assembly to the fuel pipe.

Click here

4. CONNECT FUEL TANK TO FILLER PIPE HOSE

5. CONNECT FUEL TANK BREATHER TUBE

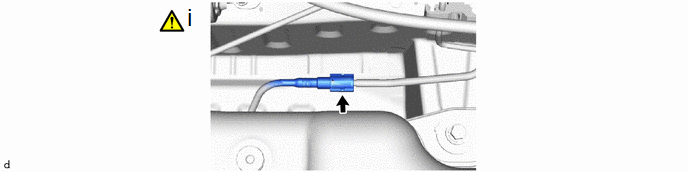

(1) Connect the fuel tank breather tube to the fuel tank filler pipe sub-assembly.

Click here

6. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY

7. INSTALL TAIL EXHAUST PIPE ASSEMBLY

Click here

8. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

9. ADD FUEL
