Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |

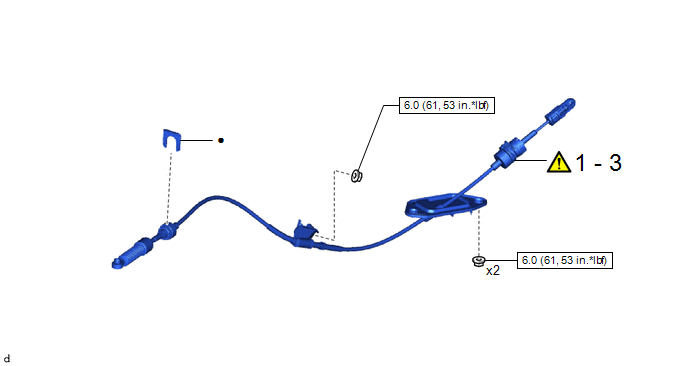

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY |
33820B |
- |
- |
- |
|
2 |
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side) |
33820B |
|
- |
- |
|
3 |
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side) |
33820B |
|
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|
4 |
NO. 1 CONSOLE BOX DUCT |
58861B |
- |
- |
- |
|
5 |
NO. 2 CONSOLE BOX DUCT |
58862B |
- |
- |
- |
|
6 |
NO. 3 CONSOLE BOX DUCT |
58863A |
- |
- |
- |
|
7 |
CONSOLE BOX ASSEMBLY |
58810J |
- |
- |
- |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|

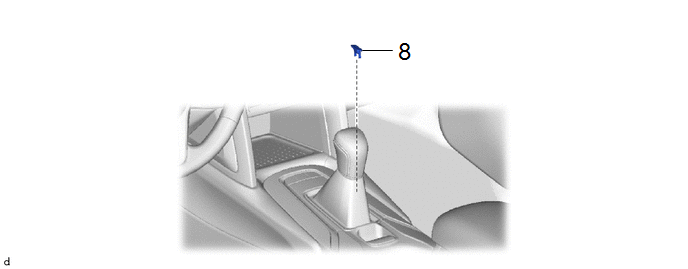

8 |
SHIFT LOCK RELEASE BUTTON COVER |
33554C |
- |
- |
- |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|
9 |

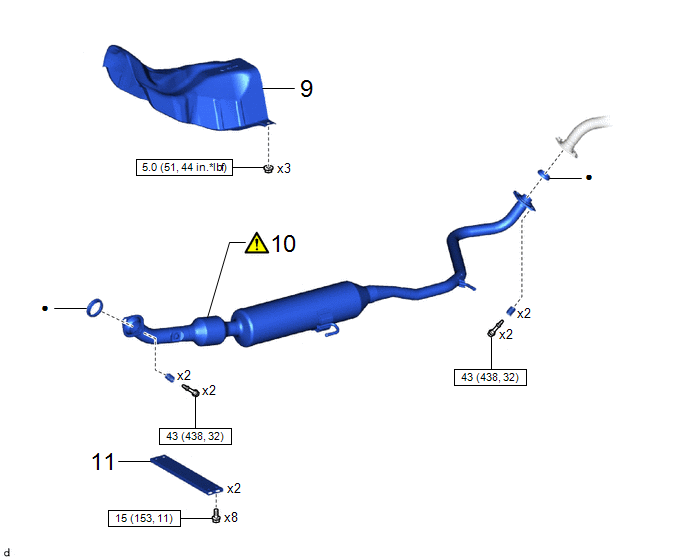

FRONT NO. 1 FLOOR HEAT INSULATOR |
58151 |
- |
- |
- |
|
10 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
17410 |
|
- |
- |
|
11 |
FRONT FLOOR CENTER BRACE |
57533B |
- |
- |
- |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|

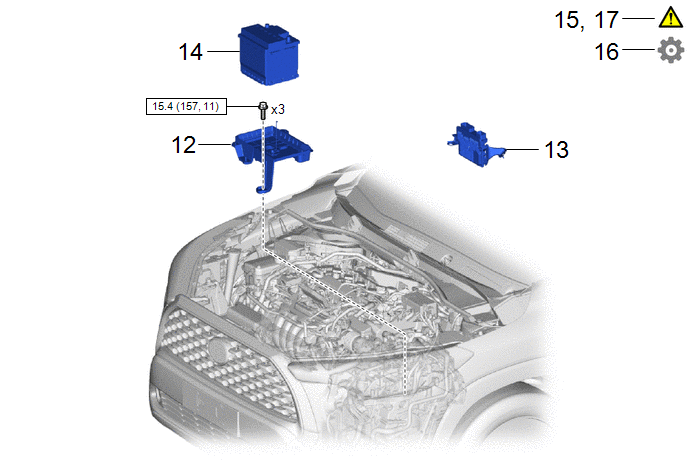

12 |
BATTERY CLAMP SUB-ASSEMBLY |
74404A |
- |
- |
- |
|
13 |
ECM |
89661 |
- |
- |
- |
|
14 |
AUXILIARY BATTERY |
- |
- |
- |
- |
|
15 |
INSPECT SHIFT LEVER POSITION |
- |
|
- |
- |
|
16 |
ADJUST SHIFT LEVER POSITION |
- |
- |
- |
|
|
17 |
INSPECT FOR EXHAUST GAS LEAK |
- |
|
- |
- |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
PROCEDURE
1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
Torque:
6.0 N·m {61 kgf·cm, 53 in·lbf}
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)
|
|
Click here |
3. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)
|
|
Click here |
4. INSTALL NO. 1 CONSOLE BOX DUCT
5. INSTALL NO. 2 CONSOLE BOX DUCT
6. INSTALL NO. 3 CONSOLE BOX DUCT
7. INSTALL CONSOLE BOX ASSEMBLY
Click here .gif)
8. INSTALL SHIFT LOCK RELEASE BUTTON COVER
9. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Torque:
5.0 N·m {51 kgf·cm, 44 in·lbf}
10. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
|
|
Click here |
11. INSTALL FRONT FLOOR CENTER BRACE
Click here
12. INSTALL BATTERY CLAMP SUB-ASSEMBLY
Click here
13. INSTALL ECM
Click here
14. INSTALL AUXILIARY BATTERY
Click here
15. INSPECT SHIFT LEVER POSITION
Click here
16. ADJUST SHIFT LEVER POSITION
Click here
17. INSPECT FOR EXHAUST GAS LEAK
Click here
