Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

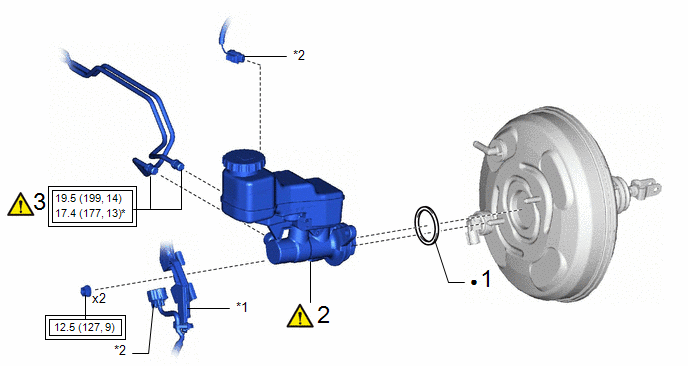

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BRAKE MASTER CYLINDER O-RING

-

-

-

-

2

BRAKE MASTER CYLINDER SUB-ASSEMBLY

47201

-

-

3

BRAKE LINE

-

-

-

*1

WIRE HARNESS

*2

CONNECTOR

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

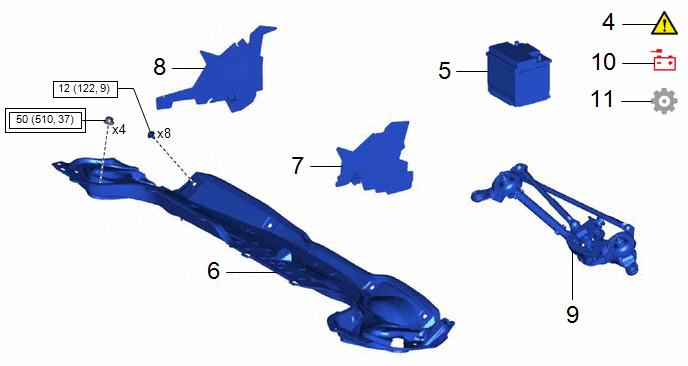

Procedure

Part Name Code

4

BLEED BRAKE SYSTEM

-

-

-

5

AUXILIARY BATTERY

-

-

-

-

6

OUTER COWL TOP PANEL SUB-ASSEMBLY

55701J

-

-

-

7

WATER GUARD PLATE

55734D

-

-

-

8

NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

55737B

-

-

-

9

WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

-

-

-

-

10

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

11

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL BRAKE MASTER CYLINDER O-RING

2. INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY

NOTICE:

When installing a new brake master cylinder sub-assembly, remove the protectors from the master cylinder piston and outlet ports.

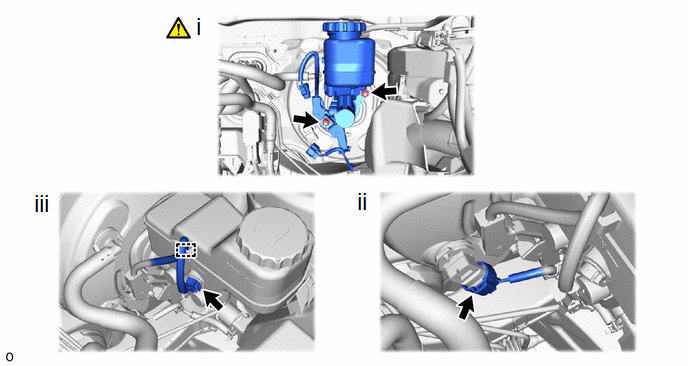

(1) Install the brake master cylinder sub-assembly and wire harness to the brake booster assembly with the 2 nuts.

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

NOTICE:

  • The brake master cylinder sub-assembly requires careful handling. Do not drop or subject the brake master cylinder sub-assembly to any impact. Do not reuse a brake master cylinder sub-assembly that has been dropped.
  • Do not hold the brake master cylinder sub-assembly by the master cylinder piston. Hold the brake master cylinder sub-assembly by its body or its reservoir when carrying it.
  • Do not pull out the master cylinder piston.
  • Do not strike or pinch the master cylinder piston, or cause any damage to the master cylinder piston by any other means.
  • When installing the brake master cylinder sub-assembly to the brake booster assembly, or when removing the brake master cylinder sub-assembly from the brake booster assembly, make sure that the brake master cylinder sub-assembly is kept horizontal or with its tip facing downward (the master cylinder piston is facing upward) to prevent the master cylinder piston from falling out.
  • Do not allow any foreign matter to contaminate the master cylinder piston. If any foreign matter gets on the master cylinder piston, remove it by using a piece of new and dry cloth. Do not use water or detergent. Then apply an even layer of lithium soap base glycol grease around the circumference (sliding part) of the master cylinder piston.
  • Do not use any other types of grease.
  • Do not kink or damage the brake lines.
  • Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.
  • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

(2) Connect the connector to the vacuum sensor assembly.

(3) Engage the clamp and connect the connector to the brake master cylinder reservoir assembly.

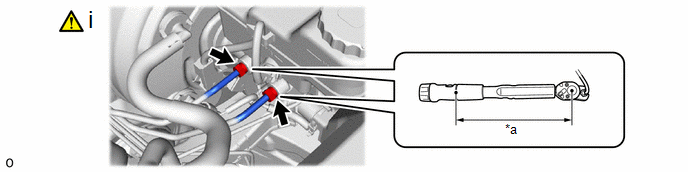

3. CONNECT BRAKE LINE

*a

Torque Wrench Fulcrum Length

-

-

(1) Using a union nut wrench, connect the 2 brake lines to the brake master cylinder sub-assembly.

Torque:

Specified tightening torque :

19.5 N·m {199 kgf·cm, 14 ft·lbf}

NOTICE:

  • Do not kink or damage the brake lines.
  • Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.
  • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

    17.4 N*m (177 kgf*cm, 13 ft.*lbf)

4. BLEED BRAKE SYSTEM

Click here

5. INSTALL AUXILIARY BATTERY

Click here

6. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Click here

7. INSTALL WATER GUARD PLATE

8. INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

9. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click here

10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
