Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2025) Service Manual / Brake / Brake System (other) / Brake Master Cylinder (for Hev Model) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

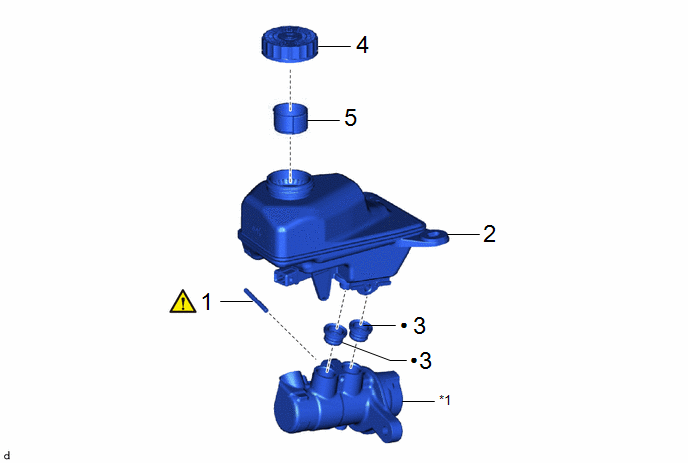

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

BRAKE MASTER CYLINDER STRAIGHT PIN

47210U

-

-

2

BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

47220D

-

-

-

3

MASTER CYLINDER RESERVOIR GROMMET

47255

-

-

-

4

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

47230

-

-

-

5

BRAKE MASTER CYLINDER RESERVOIR STRAINER

47299

-

-

-

*1

BRAKE MASTER CYLINDER BODY

-

-

●

Non-reusable part

-

-

PROCEDURE

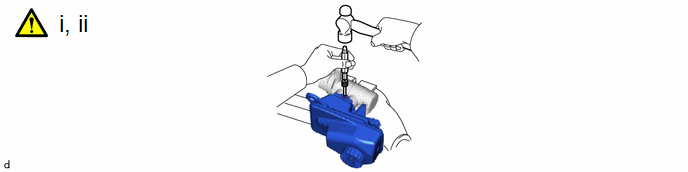

1. REMOVE BRAKE MASTER CYLINDER STRAIGHT PIN

(1) Secure the brake master cylinder sub-assembly in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.

(2) Using a 5 mm pin punch and a hammer, tap out the brake master cylinder straight pin from the brake master cylinder sub-assembly.

NOTICE:

Do not drop the brake master cylinder reservoir assembly.

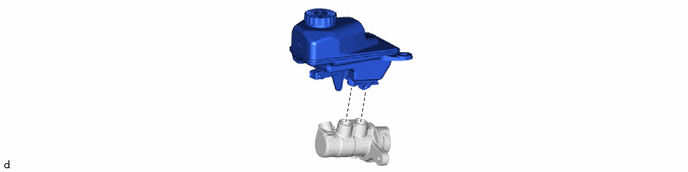

2. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

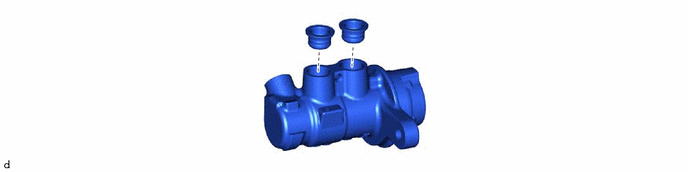

3. REMOVE MASTER CYLINDER RESERVOIR GROMMET

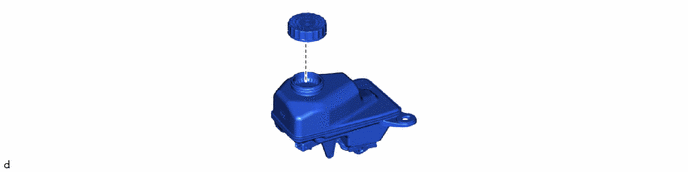

4. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

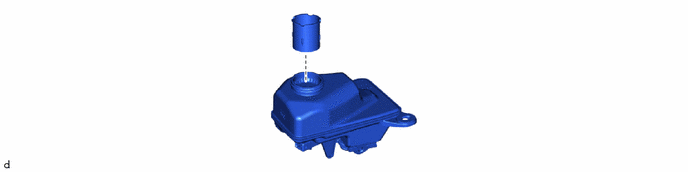

5. REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
