Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

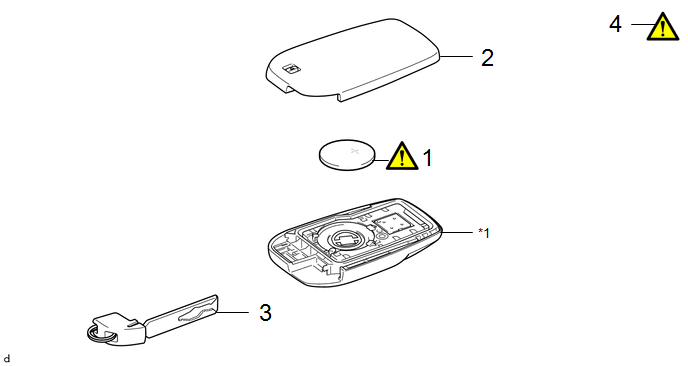

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSMITTER BATTERY

89745C

-

-

2

TRANSMITTER HOUSING COVER

-

-

-

-

3

CUT KEY

69503B

-

-

-

4

INSPECT TRANSMITTER LED ILLUMINATION

-

-

-

*1

TRANSMITTER HOUSING CASE

-

-

PROCEDURE

1. INSTALL TRANSMITTER BATTERY

NOTICE:

  • Do not push the terminals with your finger.
  • Do not forcibly pry up the transmitter battery as the terminals may be damaged.
  • Do not touch the transmitter battery with wet hands. Moisture may cause rust.
  • Do not touch or move any components inside the transmitter housing case. It may interfere with proper operation.
  • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.

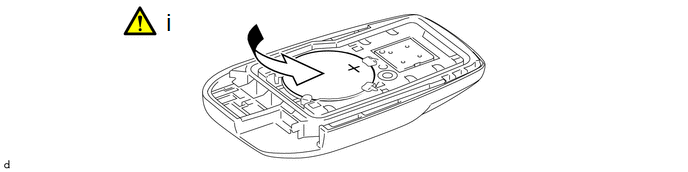

(1) Install the transmitter battery.

2. INSTALL TRANSMITTER HOUSING COVER

3. INSTALL CUT KEY

4. INSPECT TRANSMITTER LED ILLUMINATION
