PARTS LOCATION

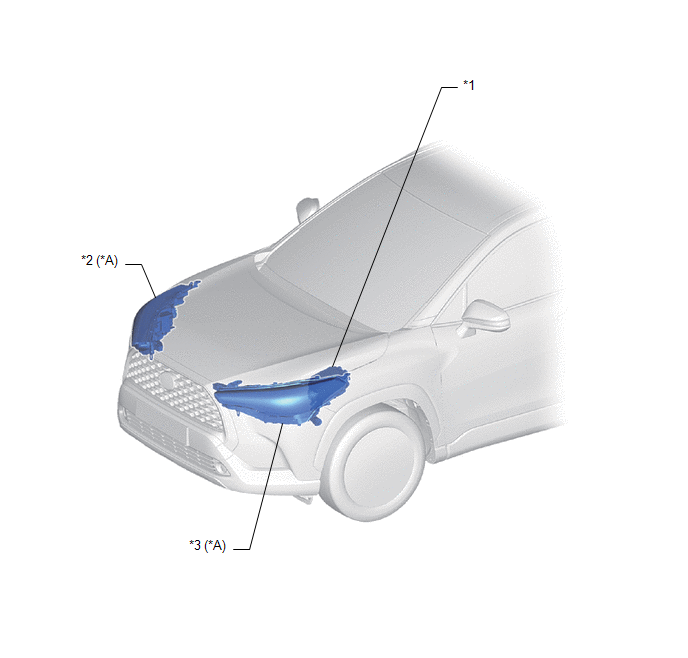

ILLUSTRATION

*A

for LED Type Parking Light without AFS

-

-

*1

NO. 1 ENGINE ROOM RELAY BLOCK

- WASHER FUSE

*2

HEADLIGHT ASSEMBLY RH

*3

HEADLIGHT ASSEMBLY LH

-

-

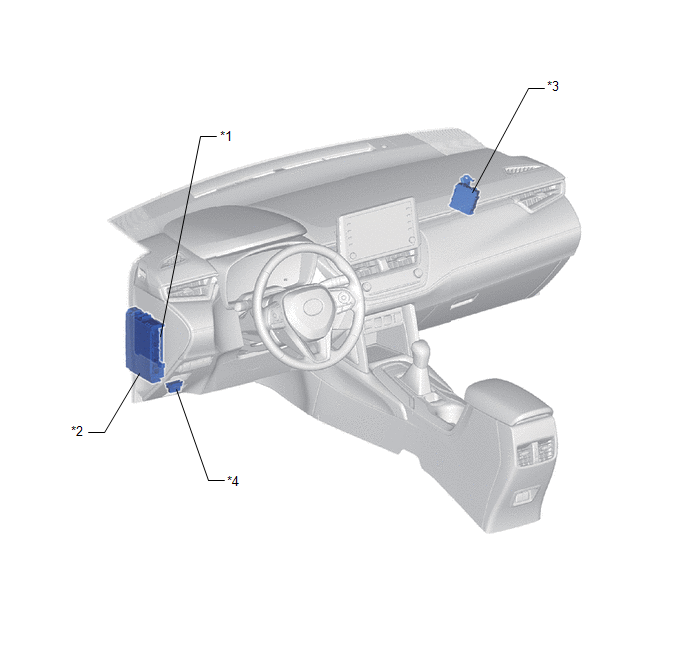

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-DCC NO.2 FUSE

- ECU-IGR NO.2 FUSE

*3

WINDSHIELD WIPER RELAY ASSEMBLY

*4

DLC3
