1. INSPECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY
(a) for LH Belt:
| (1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |

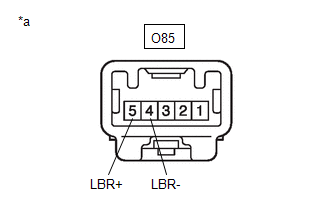

O85-5(LBR+) - O85-4(LBR-) |
Rear LH seat belt unfastened |
Below 1 Ω | |
Rear LH seat belt fastened |
10 kΩ or higher | If the result is not as specified, replace the rear seat inner with center belt assembly. |
 |
|
*a | Component without harness connected
(Rear Seat Inner with Center Belt Assembly) | | |
(b) for Center Belt:
| (1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |

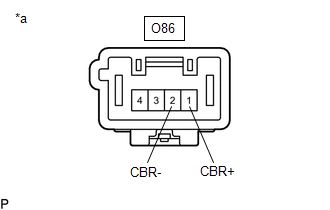

O86-1(CBR+) - O86-2(CBR-) |
Rear center seat belt unfastened |
Below 1 Ω | |
Rear center seat belt fastened |
10 kΩ or higher | If the result is not as specified, replace the rear seat inner with center belt assembly. |
 |
|
*a | Component without harness connected
(Rear Seat Inner with Center Belt Assembly) | | |
