Toyota Corolla Cross (2022-2026) Service Manual / General / Introduction / Identification Information

Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION AND SERIAL NUMBERS

VEHICLE IDENTIFICATION NUMBER

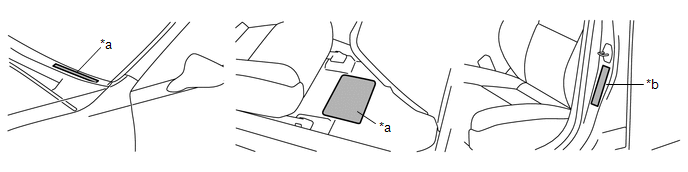

(a) The vehicle identification number is stamped on the vehicle body and on the certification label or name label as shown in the illustration.

*a

Vehicle Identification Number

*b

Certification Label or Name Label

ENGINE SERIAL NUMBER AND TRANSMISSION/TRANSAXLE CODE

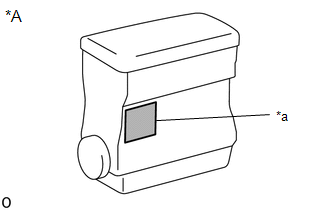

(a) The engine serial number is stamped on the area shown in the illustration.

*A

M20A-FKS, M20A-FXS

*a

Engine Serial Number

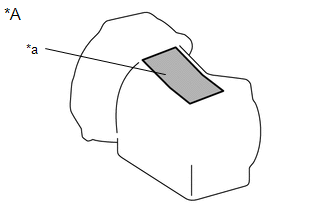

(b) The transmission/transaxle serial number, transmission/transaxle code and transmission/transaxle type are stamped on or embossed onto the area shown in the illustration.

*A

K120, K120F

*a

Transmission/Transaxle Serial Number

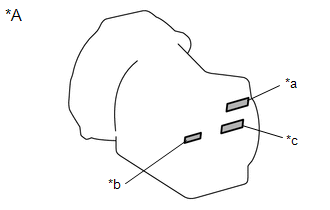

*A

PB10

*a

Transmission/Transaxle Code

*b

Transmission/Transaxle Serial Number

*c

Transmission/Transaxle Type

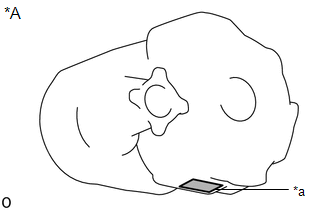

*A

Q810

*a

Transmission/Transaxle Code
