Toyota Corolla Cross: Fuel Rail Pressure Sensor "A" Circuit Short to Battery or Open (P019015)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (engine Control) / Sfi System / Fuel Rail Pressure Sensor "A" Circuit Short to Battery or Open (P019015)

DESCRIPTION

Refer to DTC P019011.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P019015

Fuel Rail Pressure Sensor "A" Circuit Short to Battery or Open

Diagnosis condition:

  • Ignition switch ON

Abnormal condition:

  • The fuel pressure sensor (for high pressure side) output voltage is higher than 4.9 V.

Malfunction time:

  • 3 seconds or more

Trip logic:

  • 1 trip detection logic

Detection conditions:

  • Continuous

Sensors/components used for detection:

  • Fuel pressure sensor (for high pressure side)
  • Open or short in fuel pressure sensor (for high pressure side) circuit
  • Fuel pressure sensor (for high pressure side)
  • ECM

Comes on
  • SAE Code: P0193
  • DTC for Mexico Models: Applies

HINT:

When this DTC is output, check the fuel pressure (for high pressure side) in the Data List. Enter the following menus: Powertrain / Engine / Data List / Fuel Pressure (High).

DTC No.

Fuel Pressure (High)

Malfunction

P019015

Approximately 33000 kPag or higher
  • Short to +B in PR circuit
  • Short in VCPR to PR circuit
  • Open in PR circuit
  • Open in EPR circuit

If the Data List values is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

Click here

MONITOR DESCRIPTION

When the ignition switch is turned ON and the output voltage of the fuel pressure sensor (for high pressure side) is higher than 4.9 V for 3 seconds or more, the ECM determines that the fuel pressure sensor (for high pressure side) circuit is malfunctioning and illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P0193: Fuel rail pressure sensor range check (High voltage)

Required Sensors/Components (Main)

Fuel pressure sensor (for high pressure side)

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

3 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

All of the following conditions are met

-

Auxiliary battery voltage

8 V or higher

Ignition switch

ON

Starter

Off

TYPICAL MALFUNCTION THRESHOLDS

Fuel rail pressure sensor voltage

Higher than 4.9 V

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON [A].
  7. Turn the GTS on.
  8. Wait 10 seconds or more [B].
  9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  12. Proceed to the next screen and enter the DTC to be checked.
  13. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P019011.

Click here

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - BODY GROUND)

HINT:

Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-2 (E2) - Body ground

Always

Below 1 Ω
NG

GO TO STEP 7

OK

2.

CHECK TERMINAL VOLTAGE (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE))

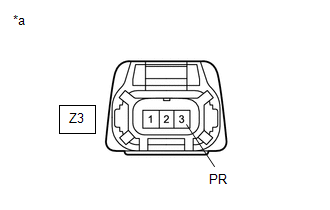

*a

Front view of wire harness connector

(to Fuel Pressure Sensor (for High Pressure Side))

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

Z3-3 (PR) - Body ground

Ignition switch ON

3.0 to 5.25 V

Result

Proceed to

Higher than 5.25 V

A

3.0 to 5.25 V

B

Below 3.0 V

C
B

GO TO STEP 4

C

GO TO STEP 6

A

3.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-3 (PR) or C76-97 (PR) - Other terminals

Always

10 kΩ or higher
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.

CHECK INTERNAL RESISTANCE (ECM)

(a) Turn the ignition switch off.

(b) Disconnect the fuel pressure sensor (for high pressure side) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-1 (VC) - Z3-3 (PR)

Ignition switch off

171 to 189 kΩ

HINT:

  • As voltage is still supplied to the ECM after the ignition switch is turned off, this check cannot be performed correctly during the shut-down process.
  • Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

    Click here

OK

REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

NG

5.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-1 (VC) - Z3-3 (PR) or C76-98 (VCPR) - C76-97 (PR)

Always

10 kΩ or higher
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-3 (PR) - C76-97 (PR)

Always

Below 1 Ω
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the fuel pressure sensor (for high pressure side) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-2 (E2) - C76-96 (EPR)

Always

Below 1 Ω
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
