Toyota Corolla Cross: Flying Capacitor Circuit Voltage Out of Range (P1AFD00)

DESCRIPTION

The battery ECU assembly monitors its internal operation and will store these DTCs when it detects an internal malfunction.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

Note

P1AFD00

Flying Capacitor Circuit Voltage Out of Range

ECU internal malfunction

(1 trip detection logic)

  • Battery ECU assembly
  • HV battery

Comes on

Master Warning:

Comes on

SAE Code: P1AFD

MONITOR DESCRIPTION

The battery ECU assembly monitors its internal operation. If the internal operation is malfunctioning, the battery ECU assembly illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P1AFD (INF P1AFD00): Battery stack voltage sense circuit

Required sensors/components

Battery ECU assembly

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

Immediately

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Battery ECU assembly

DTC P1AFD (INF P1AFD00) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 2 minutes or more.
  5. Turn the ignition switch to ON and turn the GTS on.
  6. With ignition switch ON and wait for 30 seconds or more.[*1]

    HINT:

    [*1]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Powertrain / HV Battery / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click here

NOTICE:

  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

PROCEDURE

1.

CHECK DTC OUTPUT (HV BATTERY)

(a) Check for DTCs.

Powertrain > HV Battery > Trouble Codes

Result

Proceed to

"P1AFD00" only is output.

A

DTCs except "P1AFD00" are output.

B

(b) Turn the ignition switch off.

B

GO TO DTC CHART (HYBRID BATTERY SYSTEM)

A

2.

CHECK CONNECTOR CONNECTION CONDITION (HV BATTERY HIGH VOLTAGE CONNECTOR)

CAUTION:

Be sure to wear insulated gloves and protective goggles.

(a) Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.

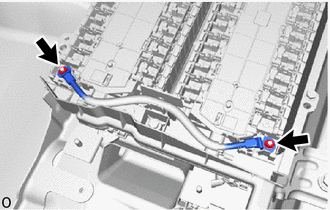

(b) Check the connector connections and contact pressure of the relevant terminals for the HV supply stack sub-assembly.

Click here

OK:

The connector is connected securely and there are no contact problems.

Result:

Result

Proceed to

OK

A

Not connected securely

The terminals are not damaged or corroded

B

Not connected securely

The terminals are damaged or corroded

C

A

REPLACE BATTERY ECU ASSEMBLY

B

CONNECT SECURELY

C

REPLACE HV BATTERY
