Toyota Corolla Cross: Electronic Brake Booster Motor "A" Current Sensor Circuit Voltage Out of Range (C13BA1C)

Toyota Corolla Cross (2022-2024) Service Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System (for Hev Model) / Electronic Brake Booster Motor "A" Current Sensor Circuit Voltage Out of Range (C13BA1C)

DESCRIPTION

When the motor current sensor inside the electric brake booster (brake booster with master cylinder assembly) meets the detection conditions, this DTC is stored.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

DTC Output from

Note

C13BA1C

Electronic Brake Booster Motor "A" Current Sensor Circuit Voltage Out of Range

Motor current sensor current abnormality is detected for 0.2 seconds or more.

Electric brake booster (brake booster with master cylinder assembly)

Comes on

Brake Booster

  • SAE Code: C13BB (Case 1 to 4)
  • Output ECU: Electric brake booster (brake booster with master cylinder assembly)

MONITOR DESCRIPTION

When the electronically controlled brake system is operating or shutting down, the motor is not operating, and the current measured by the motor current sensor inside the ECU is less than a certain value or exceeds a certain value, the electric brake booster (brake booster with master cylinder assembly) illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Related DTCs

C13BB (Case 1): Offset current monitor (current 1 high)

C13BB (Case 2): Offset current monitor (current 1 low)

C13BB (Case 3): Offset current monitor (current 2 high)

C13BB (Case 4): Offset current monitor (current 2 low)

Required Sensors/Components(Main)

Electric brake booster (brake booster with master cylinder assembly)

Required Sensors/Components(Related)

Electric brake booster (brake booster with master cylinder assembly)

Frequency of Operation

During initial checking

Duration

0.2 seconds

MIL Operation

Immediately

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

TMC's intellectual property

-

CONFIRMATION DRIVING PATTERN

NOTICE:

When performing the normal judgment procedure, make sure that the driver door is closed and is not opened at any time during the procedure.

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off.
  5. Turn the ignition switch to ON (READY) and turn the GTS on.
  6. Wait for 1 second or more. [*]

    HINT:

    [*]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Chassis / Brake Booster / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform driving pattern again.

WIRING DIAGRAM

Refer to DTC C121F04.

Click here

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (+BS TERMINAL)

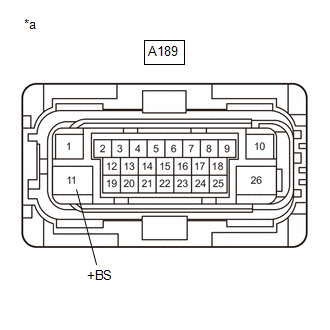

*a

Front view of wire harness connector

(to Electric Brake Booster (Brake Booster with Master Cylinder Assembly))

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A189 electric brake booster (brake booster with master cylinder assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A189-11 (+BS) - Body ground

Always

11 to 14 V

OK

REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
