Toyota Corolla Cross: Electrical Key Oscillator (for Front Floor)

Removal

REMOVAL

CAUTION / NOTICE / HINT

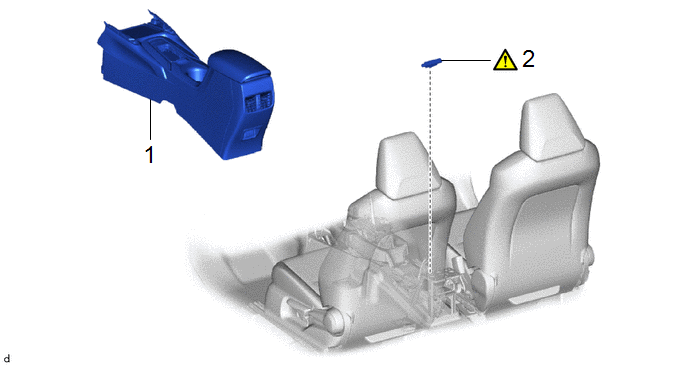

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CONSOLE BOX ASSEMBLY

58810J

-

-

-

2

NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

899A0

-

-

PROCEDURE

1. REMOVE CONSOLE BOX ASSEMBLY

Click here

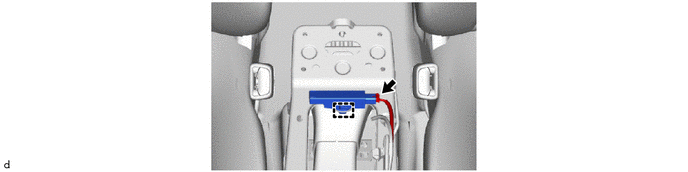

2. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:

Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

899A0

-

-

2

CONSOLE BOX ASSEMBLY

58810J

-

-

-

PROCEDURE

1. INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:

Be careful when installing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.

2. INSTALL CONSOLE BOX ASSEMBLY

Click here
