Toyota Corolla Cross: Customization

Customizable features

Your vehicle includes a variety of electronic features that can be personalized to suit your preferences. The settings of these features can be changed using the multi-information display, the audio system screen, or at your Toyota dealer.

Customizing vehicle features

■ Changing by using the audio system screen

1. Select on the main menu.

2. Select "Vehicle customise".

3. Select the item to change the settings of from the list.

For functions that can be turned on/off, select (ON)/ (OFF).

■ Changing by using the meter control switches

1. Select or of the multi-information display.

2. 4.2-inch display meter: Press or to select the desired item to be customized.

3. 7-inch display meter: Press or to select the desired item to be customized.

4. Press or press and hold .

The available settings will differ depending on if is pressed or pressed and held. Follow the instructions on the display.

WARNING

■During customization

As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

■During customization

To prevent battery discharge, ensure that the engine is running while customizing features.

Customizable features

Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details.

  1. Settings that can be changed using the audio system screen
  2. Settings that can be changed using the meter control switches
  3. Settings that can be changed by your Toyota dealer

Definition of symbols: O = Available, - = Not available

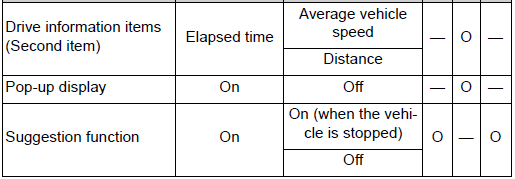

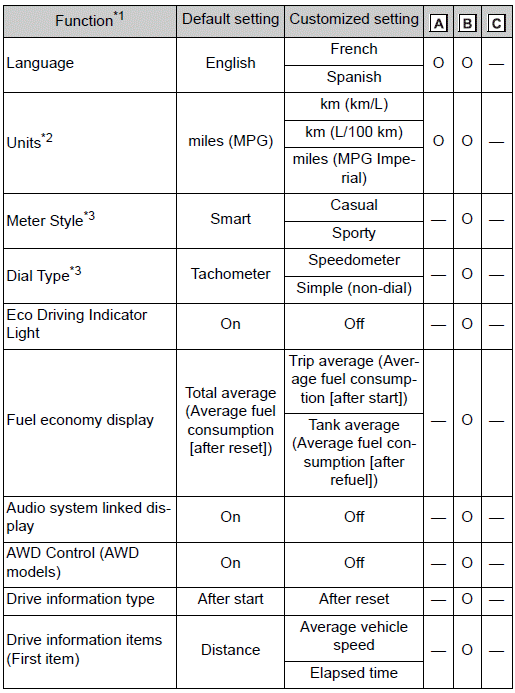

■ Gauges, meters and multi-information display

Customizable features

Customizable features

*1: For details about each function
*2: The default setting varies according to country
*3: 7-inch display

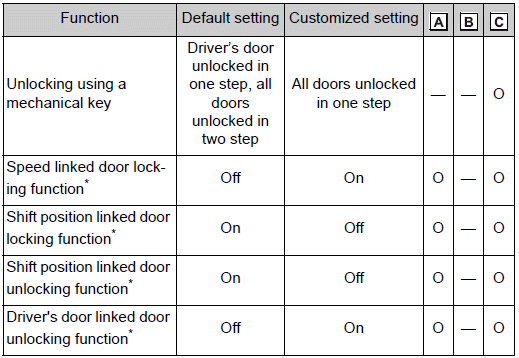

■ Door lock

Customizable features

*: This setting changes in accordance with My Settings.

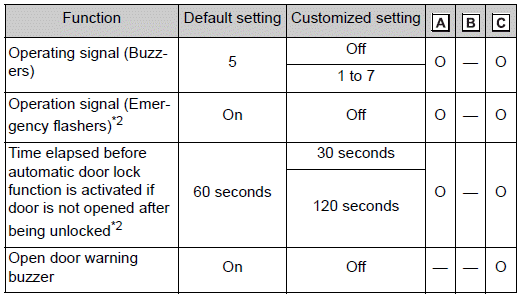

■ Smart key system*1 and wireless remote control

Customizable features

*1: If equipped
*2: This setting changes in accordance with My Settings.

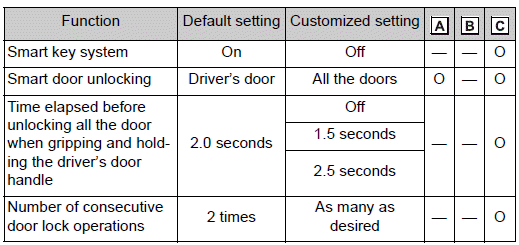

■ Smart key system*

Customizable features

*: If equipped

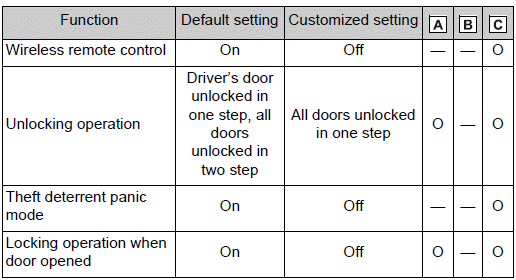

■ Wireless remote control

Customizable features

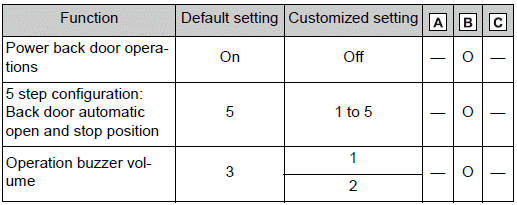

■ Power back door*

Customizable features

*: If equipped

■ Engine switch

Customizable features

■ Power windows and moon roof*

Customizable features

*: If equipped

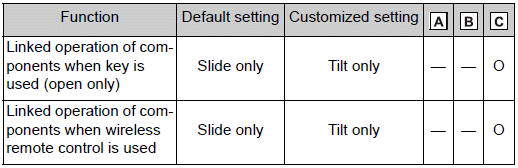

■ Moon roof*

Customizable features

*: If equipped

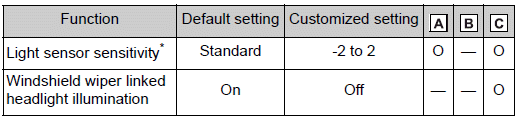

■ Automatic light control system

Customizable features

*: This setting changes in accordance with My Settings.

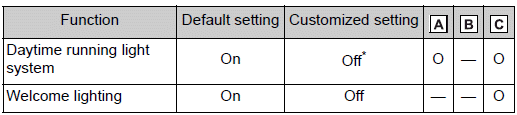

■ Lights

Customizable features

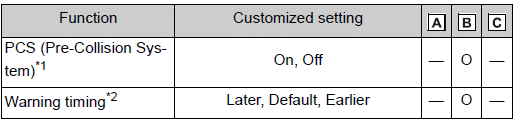

■ PCS (Pre-Collision System)

Customizable features

*1: The system is automatically enabled each time the engine switch is turned to ON.
*2: This setting changes in accordance with My Settings.

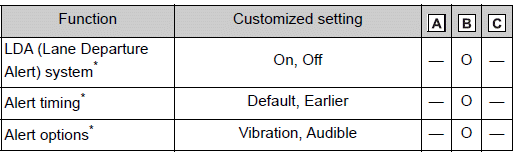

■ LDA (Lane Departure Alert)

Customizable features

*: This setting changes in accordance with My Settings.

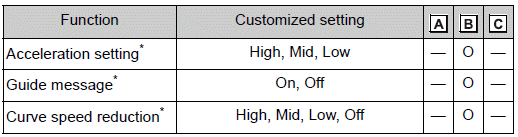

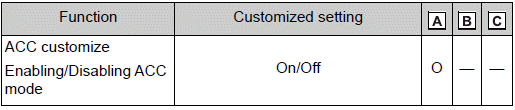

■ Dynamic radar cruise control

Customizable features

*: This setting changes in accordance with My Settings.

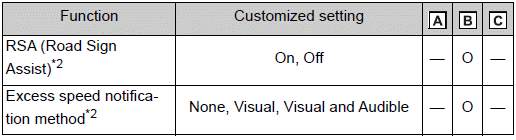

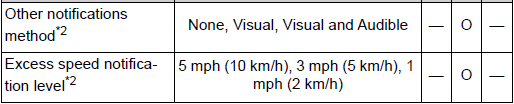

■ RSA (Road Sign Assist)*1

Customizable features

Customizable features

*1: If equipped
*2: This setting changes in accordance with My Settings.

■ Driver break suggestion

Customizable features

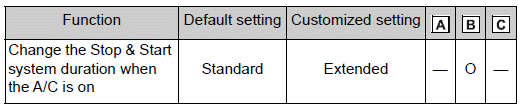

■ Stop & Start system

Customizable features

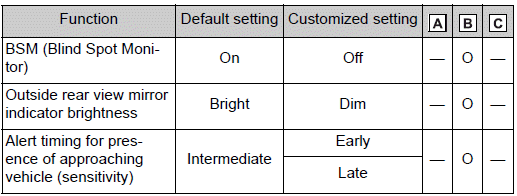

■ BSM (Blind Spot Monitor)*

Customizable features

*: If equipped

■ Intuitive parking assist*

Customizable features

*: If equipped

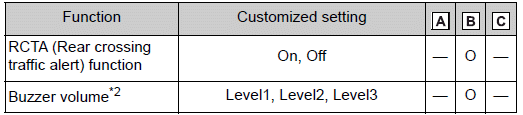

■ RCTA (Rear Cross Traffic Alert) function*1

Customizable features

*1: If equipped
*2: The sound volume is linked among the Intuitive parking assist and RCTA

■ PKSB (Parking Support Brake)*

Customizable features

*: If equipped

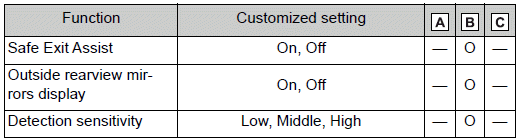

■ Safe Exit Assist

Customizable features

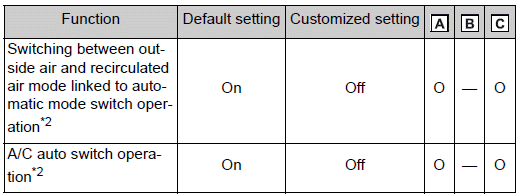

■ Automatic air conditioning system*1

Customizable features

*1: If equipped
*2: This setting changes in accordance with My Settings.

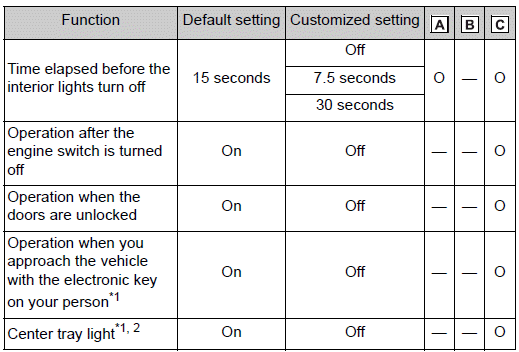

■ Illumination

Customizable features

*1: If equipped
*2: This setting changes in accordance with My Settings.

■Vehicle customization

  • When the smart key system is off, Smart door unlocking cannot be customized.
  • When the doors remain closed after unlocking the doors and the automatic door lock function is activated, the signals will be generated in accordance with the operation signal (buzzer) and the operation signal (emergency flashers) settings.

■In the following situations, customize mode in which the settings can be changed through the multi-information display will automatically be turned off

  • A warning message appears after the customize mode screen is displayed
  • The engine switch is turned off.
  • The vehicle begins to move while the customize mode screen is displayed.

Initialization

Items to initialize

The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle:

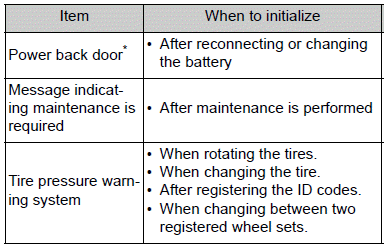

List of items to initialize

Items to initialize

*: If equipped
