Toyota Corolla Cross: Components
COMPONENTS

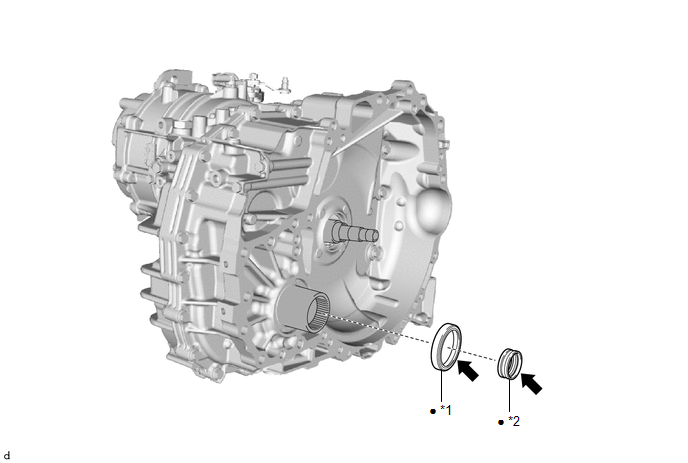

ILLUSTRATION
|
*1
|
DIFFERENTIAL SIDE OIL SEAL
|
*2
|
FRONT DRIVE SHAFT OIL SEAL RH
|
|
●
|
Non-reusable part
|
.png) |
MP grease
|
