Toyota Corolla Cross (2022-2025) Service Manual / Drivetrain / Gf1a (transfer / 4wd / Awd) / Transfer Case Front Oil Seal (for Lh Side) / Components

COMPONENTS

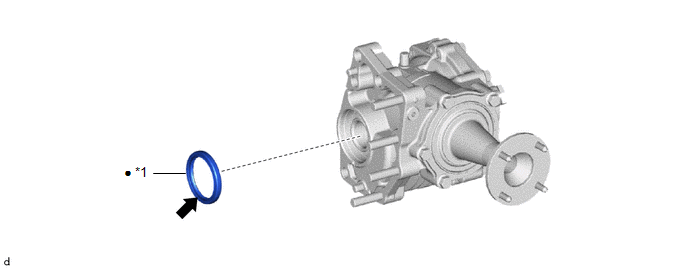

ILLUSTRATION

*1

TRANSFER CASE OIL SEAL

-

-

●

Non-reusable part

MP grease
