Toyota Corolla Cross: Components
COMPONENTS

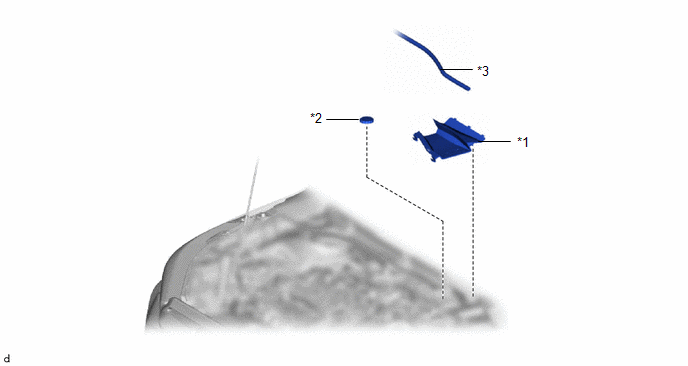

ILLUSTRATION
|
*1
|
CENTER COWL TOP VENTILATOR LOUVER
|
*2
|
BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
|
|
*3
|
HOOD TO COWL TOP SEAL
|
-
|
-
|
ILLUSTRATION
|
*1
|
FRONT DISC BRAKE BLEEDER PLUG
|
*2
|
FRONT DISC BRAKE BLEEDER PLUG CAP
|
|
*3
|
REAR DISC BRAKE BLEEDER PLUG
|
*4
|
REAR DISC BRAKE BLEEDER PLUG CAP
|
.png) |
Tightening torque for "Major areas involving basic vehicle
performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)
|
-
|
-
|
READ NEXT:
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT BRAKE FLUID LEVEL IN RESERVOIR
(a) Check the fluid level.
Brake Fluid:
SAE J1703 or FMVSS No. 116 DOT3
SAE J1704 or FMVSS No. 116 DOT
BLEEDING
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization,
or registration) that must be performed after parts are removed and installed, or
replaced dur
SEE MORE:
REMOVAL CAUTION / NOTICE / HINT COMPONENTS (REMOVAL)
Procedure Part Name Code
1 DECK TRIM SIDE PANEL ASSEMBLY
64740C -
- -
2 ROOF SIDE INNER GARNISH ASSEMBLY LH
62480A -
- -
3 QUARTER WINDOW ASSEMBLY
62720A
On-vehicle InspectionON-VEHICLE INSPECTION PROCEDURE
1. INSPECT HORN RELAY ASSEMBLY (a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection Condition
Specified Condition
3 - 5 Auxiliary
