Toyota Corolla Cross: Clearance Light Bulb

Toyota Corolla Cross (2022-2024) Service Manual / General / Maintenance / Clearance Light Bulb

Removal

REMOVAL

CAUTION / NOTICE / HINT

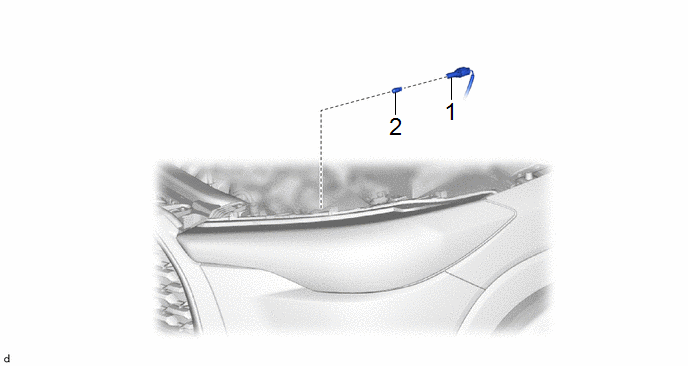

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CLEARANCE LIGHT SOCKET

-

-

-

-

2

CLEARANCE LIGHT BULB

81610F

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE CLEARANCE LIGHT SOCKET

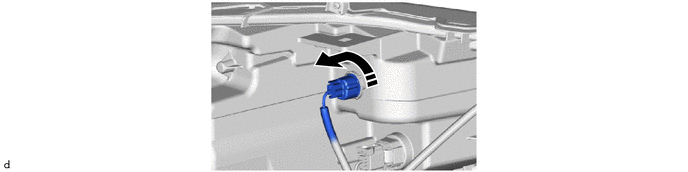

Remove in this Direction

-

-

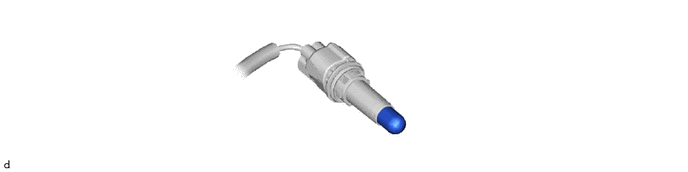

2. REMOVE CLEARANCE LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

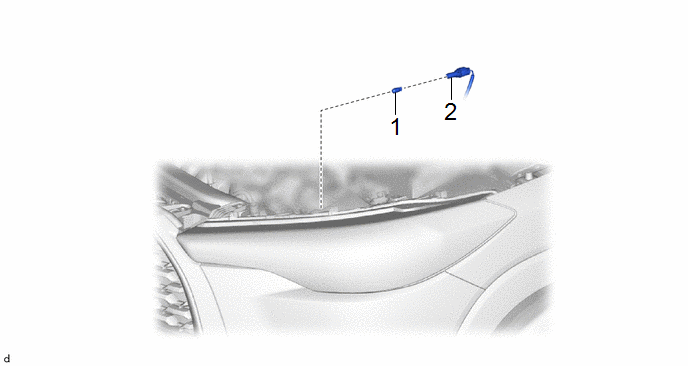

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

CLEARANCE LIGHT BULB

81610F

-

-

-

2

CLEARANCE LIGHT SOCKET

-

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL CLEARANCE LIGHT BULB

2. INSTALL CLEARANCE LIGHT SOCKET
