Toyota Corolla Cross: Transponder Key Amplifier

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Transponder Key Amplifier

Removal

REMOVAL

CAUTION / NOTICE / HINT

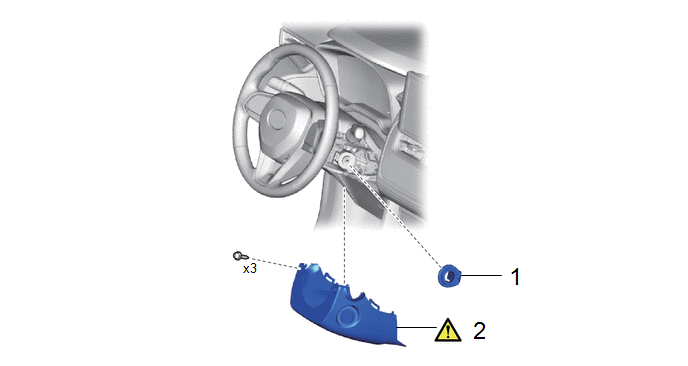

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

LOWER STEERING COLUMN COVER

45287

-

-

2

TRANSPONDER KEY COIL

89782

-

-

-

PROCEDURE

1. REMOVE LOWER STEERING COLUMN COVER

Click here

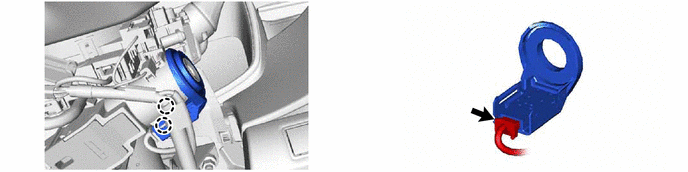

2. REMOVE TRANSPONDER KEY COIL

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TRANSPONDER KEY COIL

89782

-

-

-

2

LOWER STEERING COLUMN COVER

45287



-

-

PROCEDURE

1. INSTALL TRANSPONDER KEY COIL

2. INSTALL LOWER STEERING COLUMN COVER

Click here
