Toyota Corolla Cross: Telephone And Gps Antenna

Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Cellular Communication / Telephone And Gps Antenna

Removal

REMOVAL

CAUTION / NOTICE / HINT

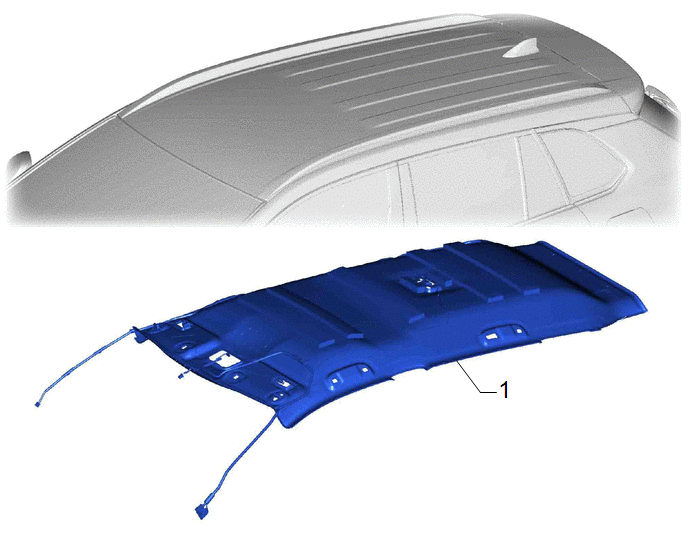

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

ROOF HEADLINING ASSEMBLY

63310

-

-

-

Procedure

Part Name Code

2

ROOF ANTENNA ASSEMBLY

86300J

-

-

-

*1

ROOF ANTENNA ASSEMBLY WITH COVER

*2

SEAL

*3

WASHER AND HOLDER

*4

COVER

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY

Click here

2. REMOVE ROOF ANTENNA ASSEMBLY

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ROOF ANTENNA ASSEMBLY

86300J

-

-

-

*1

ROOF ANTENNA ASSEMBLY WITH COVER

*2

SEAL

*3

WASHER AND HOLDER

*4

COVER

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Procedure

Part Name Code

2

ROOF HEADLINING ASSEMBLY

63310

-

-

-

PROCEDURE

1. INSTALL ROOF ANTENNA ASSEMBLY

Click here

2. INSTALL ROOF HEADLINING ASSEMBLY

Click here
