Toyota Corolla Cross: System functions - PCS

■ Pre-collision warning

When the system determines that the possibility of a collision is high, a buzzer will sound and an icon and warning message will be displayed on the multi-information display to urge the driver to take evasive action.

If the detectable object is a vehicle, moderate braking will be performed with the warning.

Using the driving support systems

If the system determines that the accelerator pedal is strongly depressed, the following icon and message will be displayed on the multi-information display.

Using the driving support systems

■ Pre-collision brake assist

If the system determines that the possibility of a collision is high and the brake operation by the driver is insufficient, the braking power will be increased.

■ Pre-collision brake control

If the system determines that the possibility of a collision is extremely high, the brakes are automatically applied to help avoid the collision or reduce the impact of the collision.

■ Emergency steering assist

If the system determines that the following conditions are met, assistance will be provided to help enhance vehicle stability and prevent lane departure.

During assistance, in addition to the pre-collision warning, the following icon will be displayed on the multi-information display.

  • The possibility of a collision is high
  • There is sufficient space within the lane to perform evasive steering maneuvers
  • The driver is operating the steering wheel

During assistance, the pre-collision warning will operate and a message will be displayed to warn the driver.

Using the driving support systems

■ Intersection collision avoidance support (left/right turn)

In situations such as the following, if the system determines that the possibility of a collision is high, the pre-collision warning and pre-collision braking will operate.

Depending on the intersection, assistance may not operate correctly.

  • When turning left/right at an intersection and crossing the path of an oncoming vehicle

Using the driving support systems

  • When turning left/right and an oncoming pedestrian or bicycle is detected

Using the driving support systems

■ Intersection collision avoidance support (crossing vehicles)

At an intersection, etc., if the system determines that the possibility of a collision with an approaching vehicle or motorcycle is high, the pre-collision warning and pre-collision braking will operate.

Depending on the intersection, assistance may not operate correctly.

Using the driving support systems

■ Acceleration Suppression at Low Speed

When driving at a low speed, if the accelerator pedal is strongly depressed and the system determines that there is a possibility of a collision, engine output will be restrained or the brakes will be applied weakly to restrict acceleration. During operation, a buzzer will sound and a warning indicator and message will be displayed on the multi-information display.

Using the driving support systems

WARNING

■Pre-collision braking

  • When the pre-collision braking function is operating, a large amount of braking force will be applied.
  • The pre-collision braking function is not designed to hold the vehicle stopped. If the vehicle is stopped by pre-collision brake control, the driver should operate the brakes immediately as necessary.
  • The pre-collision braking function may not operate if certain operations are performed by the driver. If the accelerator pedal is being depressed strongly or the steering wheel is being turned, the system may determine that the driver is taking evasive action and possibly prevent the pre-collision braking function from operating.
  • If the brake pedal is being depressed, the system may determine that the driver is taking evasive action and possibly delay the operation timing of the pre-collision brake control.

■Acceleration Suppression at Low Speed

If the steering wheel is being turned, the system may determine that the driver is taking evasive action and possibly prevent the Acceleration Suppression at Low Speed function from operating or possibly causing its operation to be canceled.

■Emergency steering assist

  • The emergency steering assist will be canceled when the system determines that lane departure prevention control has completed.
  • Depending on operations performed by the driver, emergency steering assist may not operate or operation may be canceled.
  • If the accelerator pedal is depressed strongly, the steering wheel is turned heavily, the brake pedal is depressed, or the turn signal lever is operated, the system may determine that the driver is taking evasive action and the emergency steering assist may not operate.
  • While the emergency steering assist is operating, if the accelerator pedal is depressed strongly, the steering wheel is turned heavily, or the brake pedal is depressed, the system may determine that the driver is taking evasive action and emergency steering assist operation may be canceled.
  • While the emergency steering assist is operating, if the steering wheel is held or turned in the opposite direction of system operation, emergency steering assist operation will be canceled.

■Operating conditions of each function of the pre-collision system

The pre-collision system is enabled and the system determines that the possibility of a frontal collision with a detected object is high.

However, the system will not operate in the following situations:

  • When the vehicle has not been driven a certain amount after a terminal of the battery has been disconnected and reconnected
  • When the shift lever is in R
  • When the VSC OFF indicator is illuminated (only the pre-collision warning function will be operational)

The following are the operational speeds and cancelation conditions of each function:

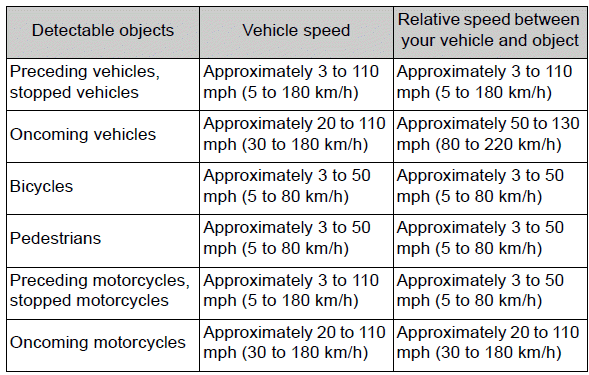

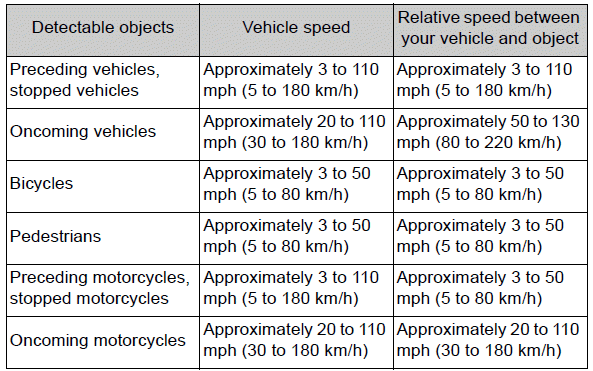

  • Pre-collision warning

Using the driving support systems

While the pre-collision warning is operating, if the steering wheel is operated heavily or suddenly, the pre-collision warning may be cancelled.

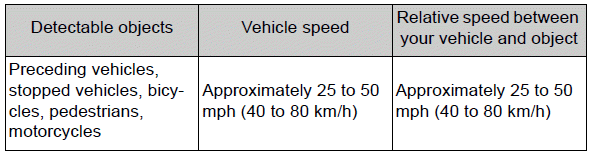

  • Pre-collision brake assist

Using the driving support systems

Using the driving support systems

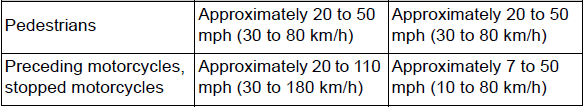

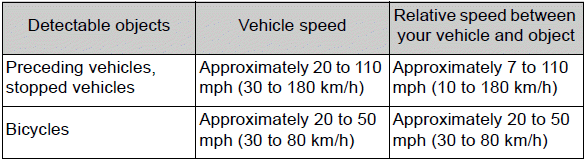

  • Pre-collision braking

Using the driving support systems

If either of the following occur while the pre-collision braking function is operating, it will be canceled:

  • The accelerator pedal is strongly depressed
  • The steering wheel is operated heavily or suddenly
  • Emergency steering assist

The emergency steering assist will not operate when the turn signal lights are flashing.

The emergency steering assist will not operate when the VSC OFF indicator is illuminated.

Using the driving support systems

While the emergency steering assist is operating, if any of the following are performed, emergency steering assist operation may be cancelled:

  • The accelerator pedal is strongly depressed
  • The steering wheel is operated heavily or suddenly
  • The brake pedal is depressed

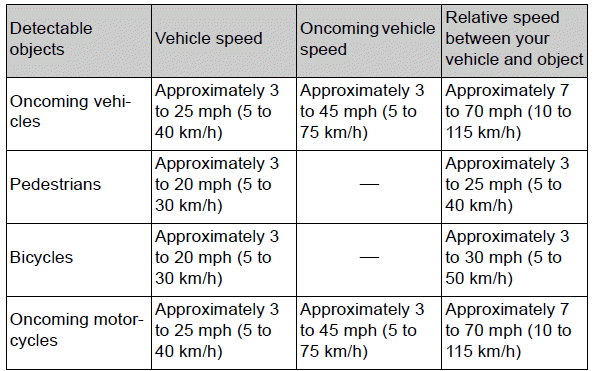

  • Intersection collision avoidance support (left/right turn)

The intersection collision avoidance support (for left/right turning vehicles) will not operate when the turn signal lights are not flashing.

Using the driving support systems

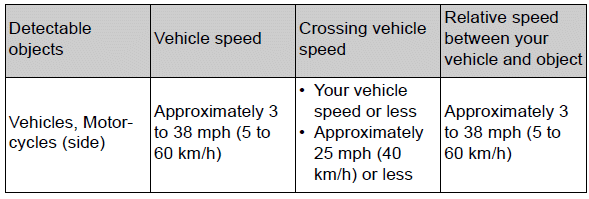

  • Intersection collision avoidance support (crossing vehicles)

Using the driving support systems

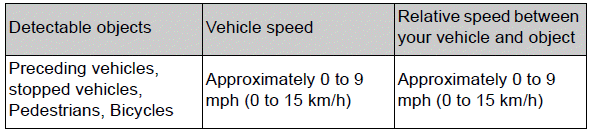

  • Acceleration Suppression at Low Speed

The Acceleration Suppression at Low Speed function will not operate when the turn signal lights are flashing.

Using the driving support systems

While the Acceleration Suppression at Low Speed function is operating, if any of the following are performed, the low speed sudden acceleration suppression function operation will be cancelled:

  • The accelerator pedal is released
  • The steering wheel is operated heavily or suddenly

■Detection of detectable objects

Objects are detected based on their size, shape, and movement.

Depending on the ambient brightness, movement, posture and direction of a detectable object, it may not be detected and the system may not operate properly.

The system detects shapes, such as the following, as detectable objects.

Using the driving support systems

■Situations in which the system may operate even though the possibility of a collision is not high

  • In certain situations, such as the following, the system may determine that the possibility of a collision is high and operate:
  • When passing a detectable object
  • When changing lanes while overtaking a detectable object
  • When suddenly approaching a detectable object
  • When approaching a detectable object or other object on the roadside roadside, such as guardrails, utility poles, trees, walls, etc.
  • When there is a detectable object or other object by the roadside at the entrance of a curve

Using the driving support systems

  • When there are patterns or a painting ahead of the vehicle that may be mistaken for a detectable object
  • When passing a detectable object that is changing lanes or turning left/right

Using the driving support systems

  • When passing a detectable object which is stopped to make a left/right turn

Using the driving support systems

  • When a detectable object stops immediately before entering the path of the vehicle
  • When passing through a location with a structure above the road (traffic sign, billboard, etc.)

Using the driving support systems

  • When approaching an electric toll gate barrier, parking lot barrier, or other barrier that opens and closes
  • When turning left/right and an oncoming vehicle, oncoming motorcycle, pedestrian or bicycle crosses in front of the vehicle
  • When attempting to turn left/right in front of an oncoming vehicle, oncoming motorcycle, pedestrian or bicycle
  • When turning left/right and an oncoming vehicle, oncoming motorcycle, pedestrian or bicycle stops or changes course immediately before entering the path of the vehicle
  • When turning left/right and an oncoming vehicle turns left/right in front of the vehicle

Using the driving support systems

  • When the steering wheel is operated toward the path of an oncoming vehicle
  • When there is an object moving above or under the road

Using the driving support systems

■Situations in which the system may not operate properly

  • In certain situations, such as the following, a detectable object may not be detected by the front sensors, and the system may not operate properly:
  • When a detectable object is approaching your vehicle
  • When your vehicle or a detectable object is wandering
  • When a detectable object makes an abrupt maneuver (such as sudden swerving, acceleration or deceleration)
  • When suddenly approaching a detectable object
  • When the detectable object is near a wall, fence, guardrail, manhole cover, steel plate on the road surface, or another vehicle
  • When there is a structure above a detectable object
  • When part of a detectable object is hidden by another object (large luggage, umbrella, guardrail, etc.)
  • When multiple detectable objects are overlapping
  • When a bright light, such as the sun, is reflecting off of a detectable object
  • When a detectable object is white and looks extremely bright
  • When the color or brightness of a detectable object causes it to blend in with its surroundings
  • When a detectable object cuts in front of or suddenly emerges in front of your vehicle
  • When approaching a vehicle which is diagonal
  • If a bicycle is a child sized bicycle, is carrying a large load, is carrying an extra passenger, is carrying a forward leaning rider, or has an unusual shape (bicycles equipped with a child seat, tandem bicycles, etc.)
  • If a pedestrian or bicycle is shorter than approximately 3.2 ft. (1 m) or taller than approximately 6.5 ft. (2 m).
  • When the silhouette of a pedestrian or bicycle is unclear (such as when they are wearing a raincoat, long skirt, etc.)
  • When a pedestrian is bending forward or squatting
  • When a pedestrian or bicycle is moving at high speed
  • When a pedestrian is pushing a stroller, wheelchair, bicycle or other vehicle
  • When a detectable object blends in with the surrounding area, such as when it is dim (at dawn or dusk) or dark (at night or in a tunnel)
  • When the vehicle has not been driven for a certain amount of time after the engine was started
  • While turning left/right or a few seconds after turning left/right
  • While driving around a curve and a few seconds after driving around a curve
  • When turning left/right and an oncoming vehicle is driving in a lane 3 or more lanes from the vehicle
  • When turning left/right and the direction of the vehicle differs greatly from the direction traffic flows in the oncoming lane

Using the driving support systems

  • When turning left/right and approaching a pedestrian or bicycle which was traveling in the same direction as the vehicle and continues straight

Using the driving support systems

  • When at an intersection, the approaching crossing vehicle is long in overall length, such as a large truck, towing trailer, etc.
  • In addition to the preceding, in certain situations, such as the following, the emergency steering assist may not operate properly:
  • When a detectable object is too close to the vehicle
  • When there is insufficient space to perform evasive steering maneuvers or an obstruction exists in the evasion direction
  • When there is an oncoming vehicle

Changing the pre-collision setting

  • The pre-collision system can be enabled/disabled through a customize setting.

The system is enabled each time the engine switch is turned to ON.

  • When the system is disabled, the PCS warning light will illuminate and a message will be displayed on the multi-information display.
  • The pre-collision setting can be changed on the customize settings.
  • When the pre-collision warning timing is changed, the emergency steering assist timing will also be changed.

    When "Later" is selected, the emergency steering assist will not operate in most cases.

  • When the dynamic radar cruise control is operating, the pre-collision warning will operate at the "Earlier" timing, regardless of the user setting.
