Toyota Corolla Cross: System Diagram

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Interior / Door Lock / Wireless Door Lock Control System (w/o Smart Key System) / System Diagram

SYSTEM DIAGRAM

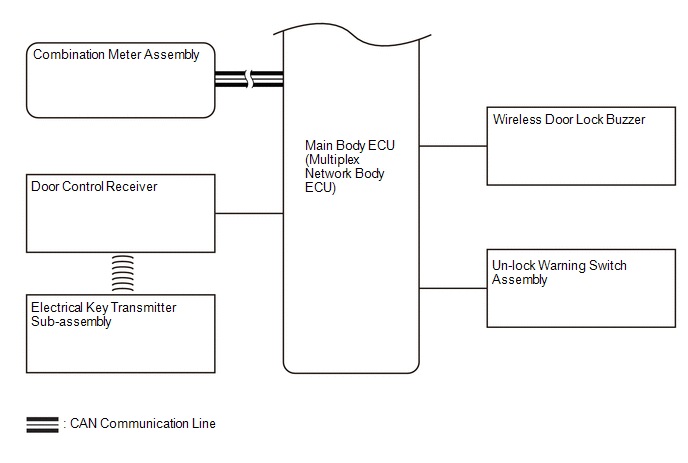

WIRELESS DOOR LOCK CONTROL SYSTEM

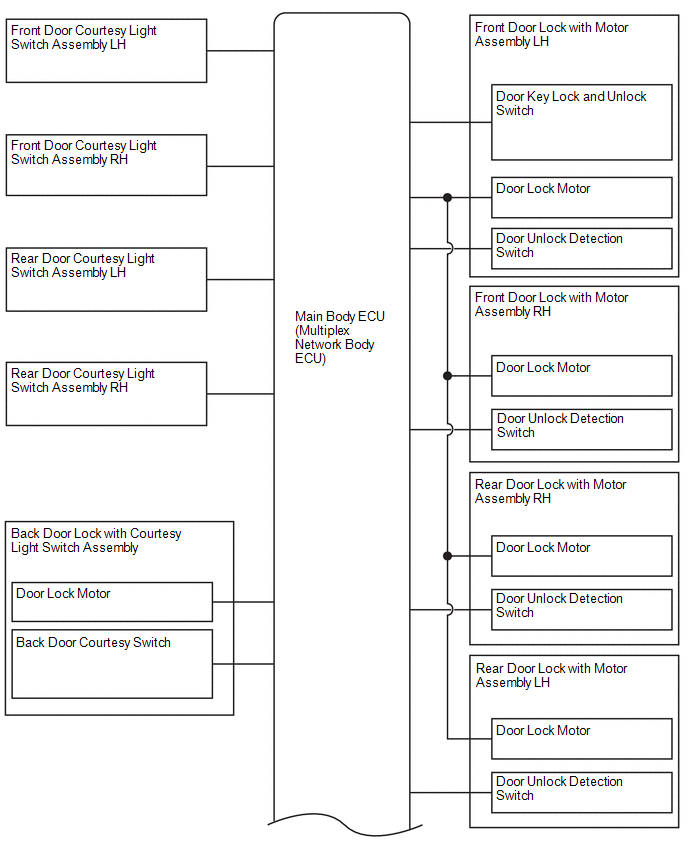

POWER DOOR LOCK CONTROL SYSTEM

Click here
