Toyota Corolla Cross: System Diagram

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120f (cvt) / Continuously Variable Transaxle System / System Diagram

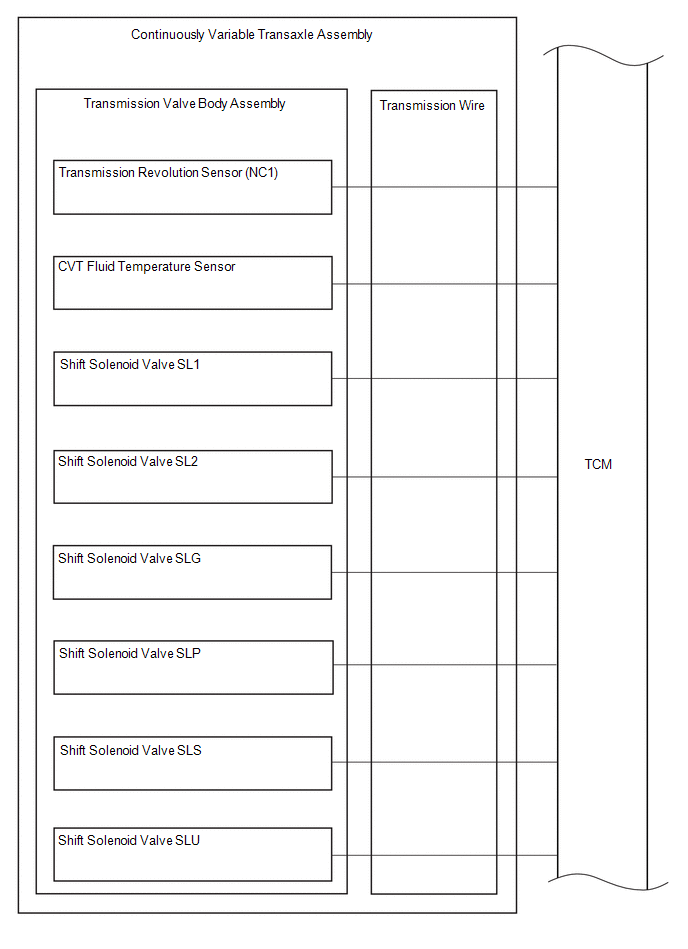

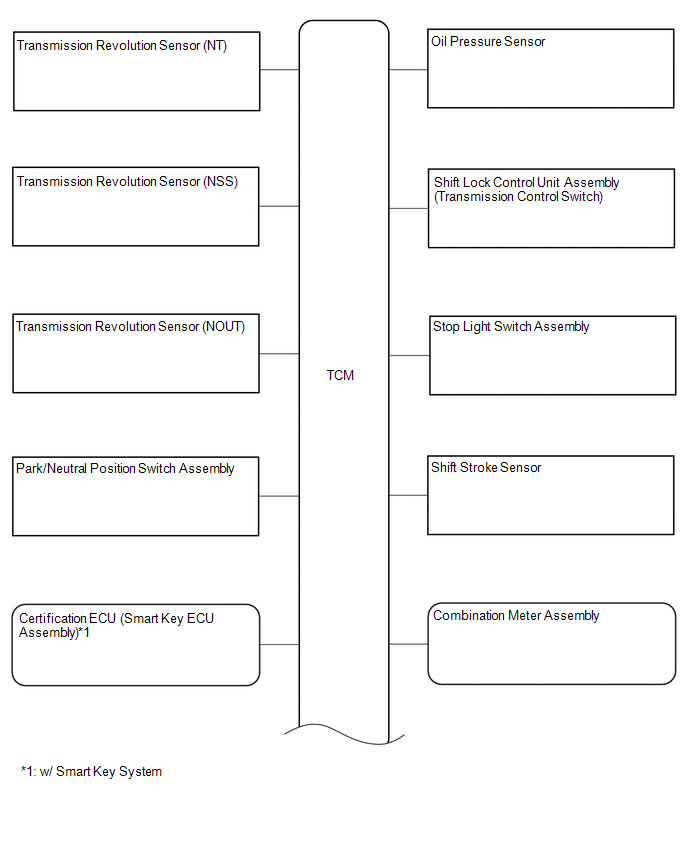

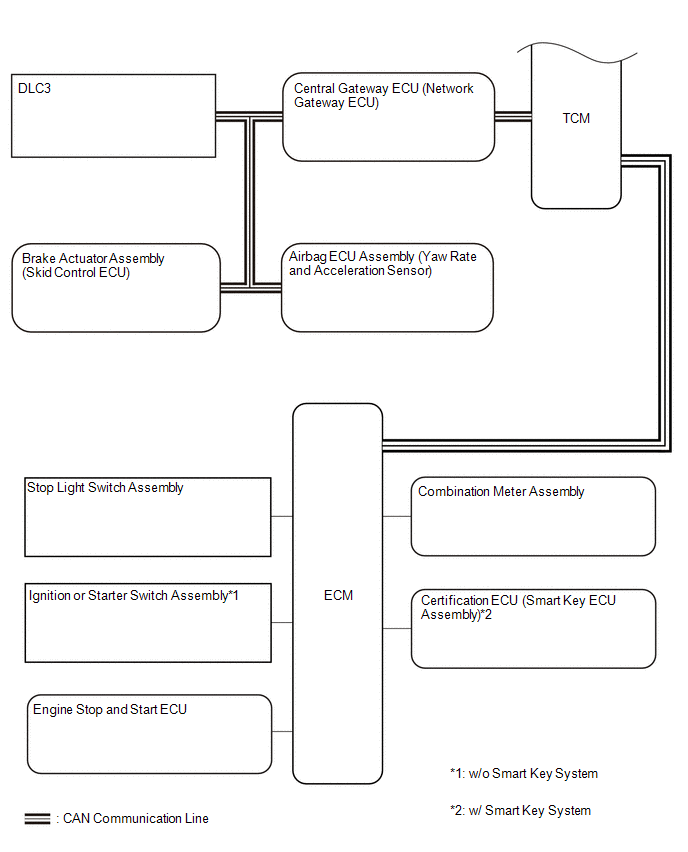

SYSTEM DIAGRAM
