Toyota Corolla Cross (2022-2025) Service Manual / Brake / Brake System (other) / Brake Line / System Diagram

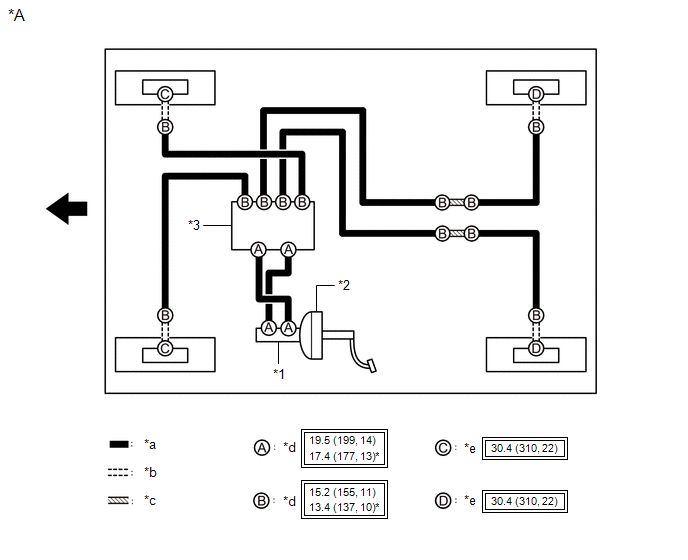

SYSTEM DIAGRAM

HINT:

See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.

*A

for HEV Model

-

-

*1

Brake Master Cylinder Sub-assembly

*2

Brake Booster Assembly

*3

Brake Actuator Assembly

-

-

*a

Brake Line

*b

Flexible Hose

*c

Brake Tube Way

*d

Union Nut

*e

Union Bolt

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Front

-

-

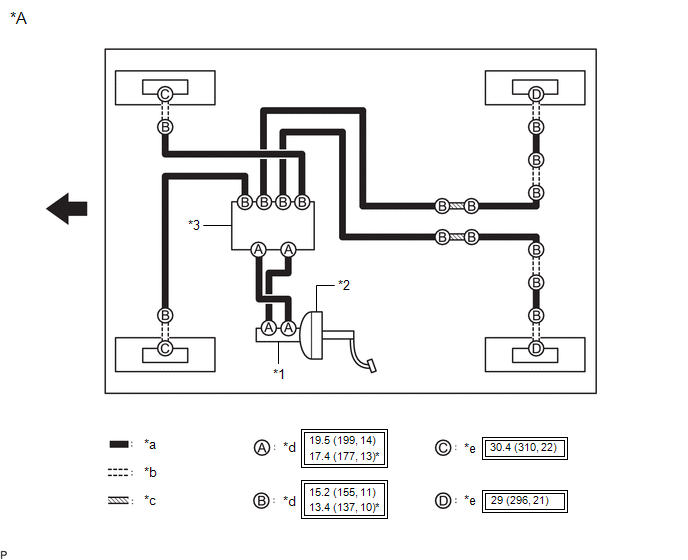

*A

for Gasoline Model (for 2WD)

-

-

*1

Brake Master Cylinder Sub-assembly

*2

Brake Booster Assembly

*3

Brake Actuator Assembly

-

-

*a

Brake Line

*b

Flexible Hose

*c

Brake Tube Way

*d

Union Nut

*e

Union Bolt

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Front

-

-

*A

for Gasoline Model (for AWD)

-

-

*1

Brake Master Cylinder Sub-assembly

*2

Brake Booster Assembly

*3

Brake Actuator Assembly

-

-

*a

Brake Line

*b

Flexible Hose

*c

Brake Tube Way

*d

Union Nut

*e

Union Bolt

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Front

-

-
