Toyota Corolla Cross: Sub Woofer Speaker Cable Actuator Stuck (B1ADF71)

Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Audio And Visual System / Sub Woofer Speaker Cable Actuator Stuck (B1ADF71)

DESCRIPTION

This DTC is stored when the stereo component amplifier assembly detects an open in the sub-woofer speaker circuit by energizing the speaker line.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

DTC Output from

Priority

B1ADF71

Sub Woofer Speaker Cable Actuator Stuck

Open in the sub-woofer speaker circuit is detected.

(1 trip detection logic)
  • Harness or connector
  • Stereo component amplifier assembly
  • No. 1 speaker with box assembly

Navigation System

A

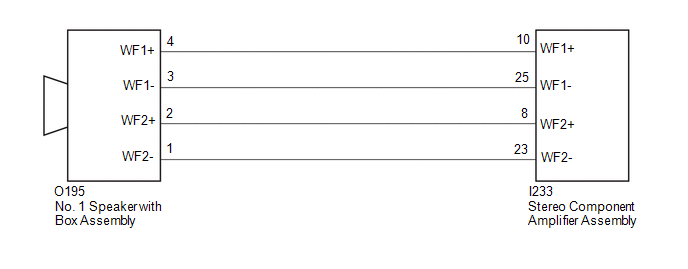

WIRING DIAGRAM

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - NO. 1 SPEAKER WITH BOX ASSEMBLY)

(a) Disconnect the I233 stereo component amplifier assembly connector.

(b) Disconnect the O195 No. 1 speaker with box assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I233-10 (WF1+) - O195-4 (WF1+)

Always

Below 1 Ω

I233-8 (WF2+) - O195-2 (WF2+)

Always

Below 1 Ω

I233-25 (WF1-) - O195-3 (WF1-)

Always

Below 1 Ω

I233-23 (WF2-) - O195-1 (WF2-)

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

2.

INSPECT NO. 1 SPEAKER WITH BOX ASSEMBLY

Click here

OK

REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY

NG

REPLACE NO. 1 SPEAKER WITH BOX ASSEMBLY
