Toyota Corolla Cross: Stereo Jack Adapter Assembly

Toyota Corolla Cross (2022-2026) Service Manual / Audio & Visual & Telematics / Audio / Video / Stereo Jack Adapter Assembly

Removal

REMOVAL

CAUTION / NOTICE / HINT

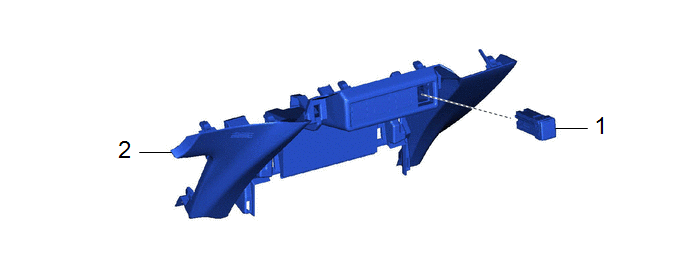

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55434F

-

-

-

2

STEREO JACK ADAPTER ASSEMBLY

86190E

-

-

-

PROCEDURE

1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

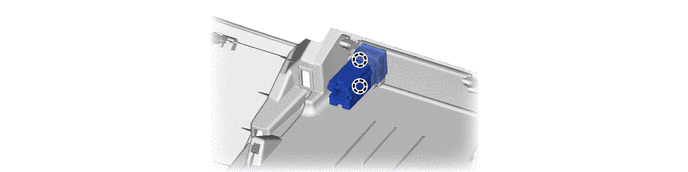

2. REMOVE STEREO JACK ADAPTER ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

STEREO JACK ADAPTER ASSEMBLY

86190E

-

-

-

2

LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55434F

-

-

-

PROCEDURE

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

2. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here
