Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fxs (engine Mechanical) / Front Crankshaft Oil Seal / Removal

REMOVAL

CAUTION / NOTICE / HINT

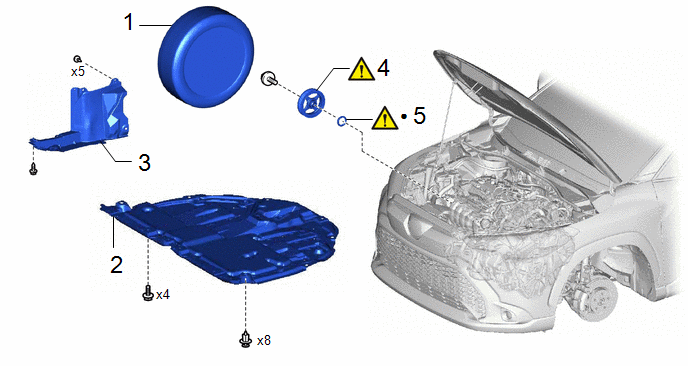

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

WHEEL ASSEMBLY

-

-

-

-

2

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

3

REAR ENGINE UNDER COVER RH

51443C

-

-

-

4

CRANKSHAFT PULLEY ASSEMBLY

13470

-

-

5

TIMING CHAIN COVER OIL SEAL

11301C

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE WHEEL ASSEMBLY

Click here

2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

3. REMOVE REAR ENGINE UNDER COVER RH

Click here

4. REMOVE CRANKSHAFT PULLEY ASSEMBLY

Click here

5. REMOVE TIMING CHAIN COVER OIL SEAL

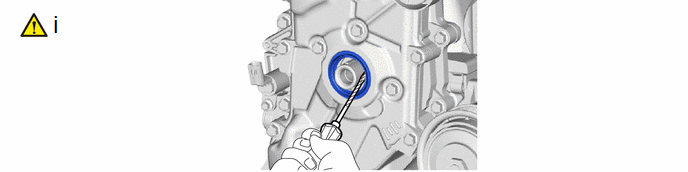

(1) Using a screwdriver, pry out the timing chain cover oil seal.

NOTICE:

Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.

    READ NEXT:

     Installation
