REMOVAL

CAUTION / NOTICE / HINT

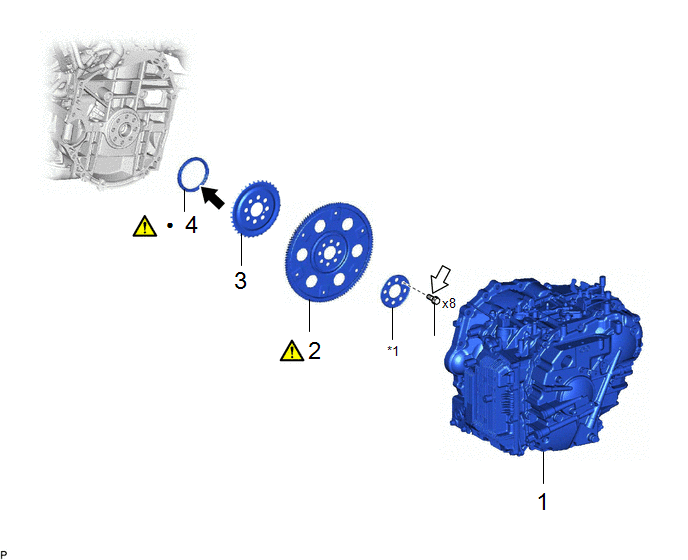

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

-

-

-

-

2

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

32101B

-

-

3

NO. 1 CRANKSHAFT POSITION SENSOR PLATE

19315

-

-

-

4

REAR ENGINE OIL SEAL

11401L

-

-

*1

REAR DRIVE PLATE SPACER

-

-

Non-reusable part

MP grease

Adhesive 1324

Precoated part

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven.

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

  • for 2WD

    Click here

  • for 4WD

    Click here

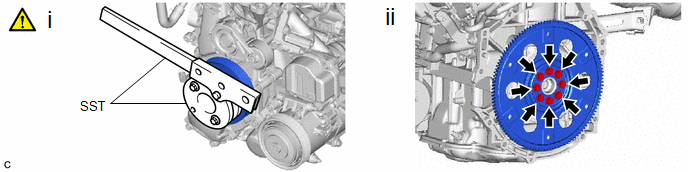

2. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

(1) Using SST, hold the crankshaft pulley assembly.

SST: 09213-54015

SST: 09330-00021

(2) Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly.

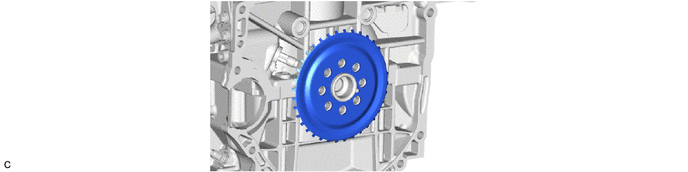

3. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

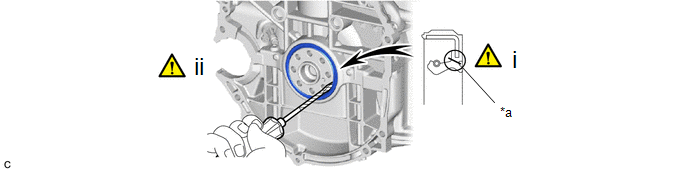

4. REMOVE REAR ENGINE OIL SEAL

*a

Cut Position

-

-

(1) Using a knife, cut off the lip of the rear engine oil seal.

(2) Using a screwdriver, pry out the rear engine oil seal.

NOTICE:

Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.
