REMOVAL

CAUTION / NOTICE / HINT

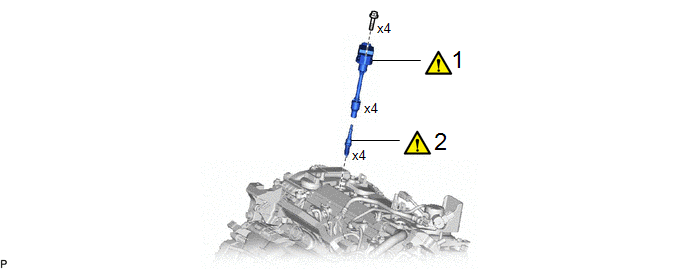

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	IGNITION COIL ASSEMBLY	19500		-	-
2	SPARK PLUG	19100P		-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ignition coil assembly Replacement of spark plug	Inspection after repair	Poor idle, etc. Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

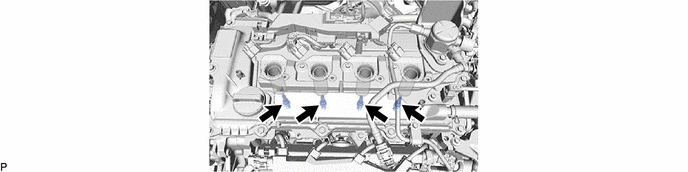

1. REMOVE IGNITION COIL ASSEMBLY

Click here

2. REMOVE SPARK PLUG

NOTICE:

If a spark plug has been struck or dropped, replace it.
