Toyota Corolla Cross: Power Source Circuit

DESCRIPTION

This circuit provides power to operate the blind spot monitor sensor.

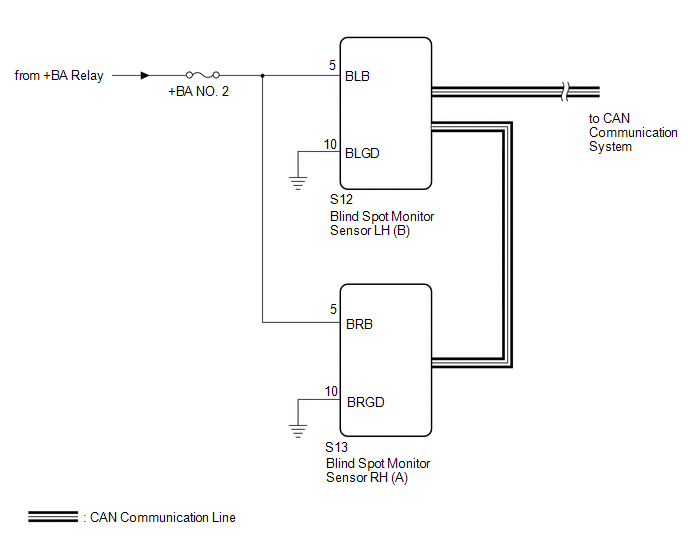

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) POWER SOURCE)

(a) Disconnect the S12 blind spot monitor sensor LH (B) connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

S12-5 (BLB) - Body ground

Ignition switch ON

11 to 14 V

S12-5 (BLB) - Body ground

Ignition switch off

Below 1 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - BODY GROUND)

(a) Disconnect the S12 blind spot monitor sensor LH (B) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

S12-10 (BLGD) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) POWER SOURCE)

(a) Disconnect the S13 blind spot monitor sensor RH (A) connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

S13-5 (BRB) - Body ground

Ignition switch ON

11 to 14 V

S13-5 (BRB) - Body ground

Ignition switch off

Below 1 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - BODY GROUND)

(a) Disconnect the S13 blind spot monitor sensor RH (A) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

S13-10 (BRGD) - Body ground

Always

Below 1 Ω

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
