INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|

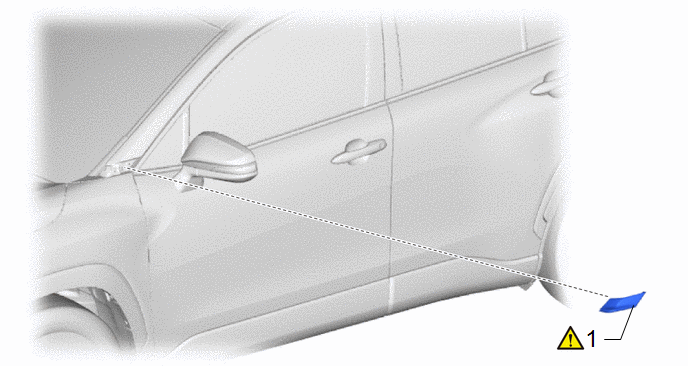

1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY |
60118 |
|
- | - |
.gif)
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY
|
|
NOTICE: When installing the front pillar upper cover sub-assembly, heat the vehicle body using a heat light. |
Standard:
|
Item | Temperature |
|---|---|
|
Vehicle Body | 40 to 60°C (104 to 140°F) |

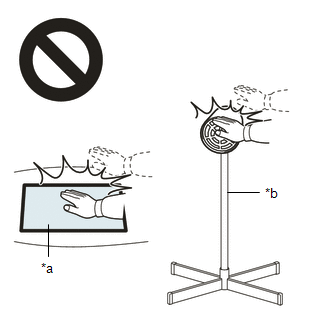

CAUTION:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
.png)
|
*a | Heated Part |
|
*b | Heat Light |
NOTICE:
Do not heat the vehicle body excessively.
|

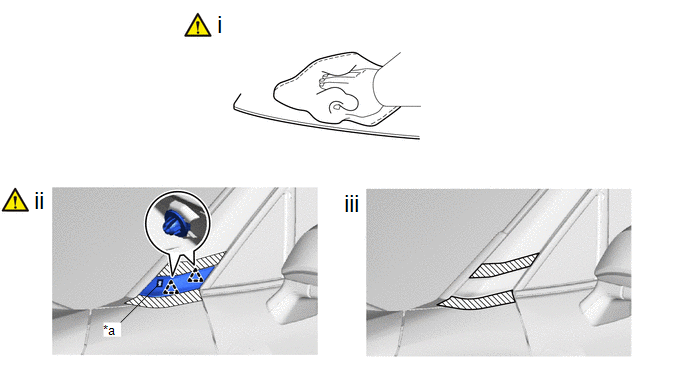

*a | Double-sided Tape |
- | - |
(1) Clean the vehicle body.
1. Using a heat light, heat the vehicle body surface.
2. Remove any remaining double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
NOTICE:
- Installing the front pillar upper cover sub-assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
(2) Install the front pillar upper cover sub-assembly.
1. Using a heat light, heat the vehicle body.
2. Remove the release paper from the front pillar upper cover sub-assembly.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Engage the clips to install the front pillar upper cover sub-assembly.
HINT:
Press the front pillar upper cover sub-assembly firmly to install it.
(3) Remove the protective tape.
