Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

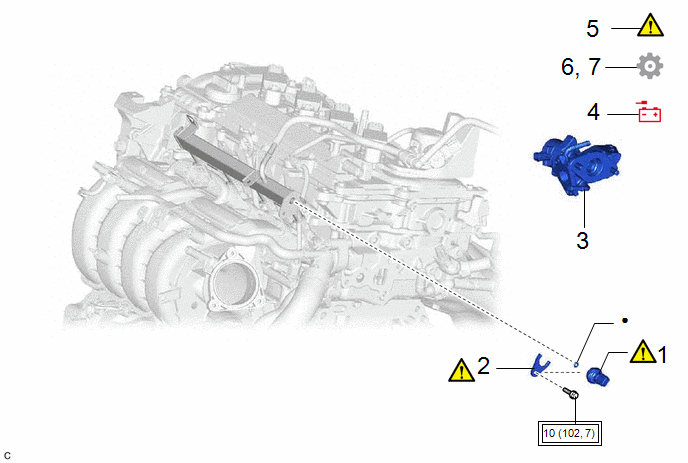

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 2 FUEL PRESSURE SENSOR

89458H

-

-

2

NO. 2 FUEL PRESSURE SENSOR HOLDER

23851A

-

-

3

EGR VALVE ASSEMBLY

25620

-

-

-

4

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

5

INSPECT FOR FUEL LEAK

-

-

-

6

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

7

PERFORM INITIALIZATION

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL NO. 2 FUEL PRESSURE SENSOR

NOTICE:

Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click here

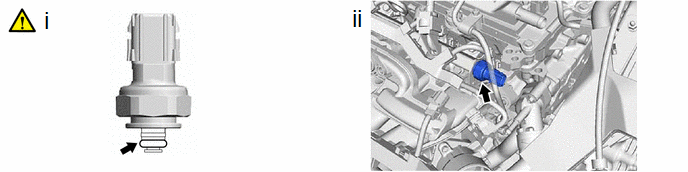

(1) Install a new O-ring to the No. 2 fuel pressure sensor.

(2) Install the No. 2 fuel pressure sensor to the fuel delivery pipe sub-assembly.

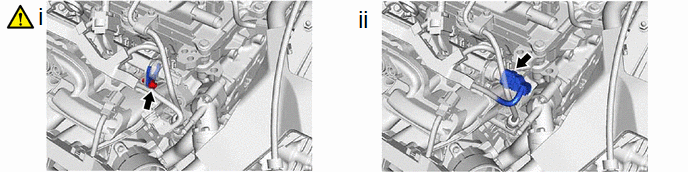

2. INSTALL NO. 2 FUEL PRESSURE SENSOR HOLDER

(1) Using an 8 mm socket wrench, install the No. 2 fuel pressure sensor holder to the fuel delivery pipe sub-assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(2) Connect the No. 2 fuel pressure sensor connector.

3. INSTALL EGR VALVE ASSEMBLY

Click here

4. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

5. INSPECT FOR FUEL LEAK

Click here

6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

7. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor.

Click here
