Toyota Corolla Cross (2022-2026) Service Manual / Audio & Visual & Telematics / Audio / Video / Stereo Component Amplifier / Installation

INSTALLATION

CAUTION / NOTICE / HINT

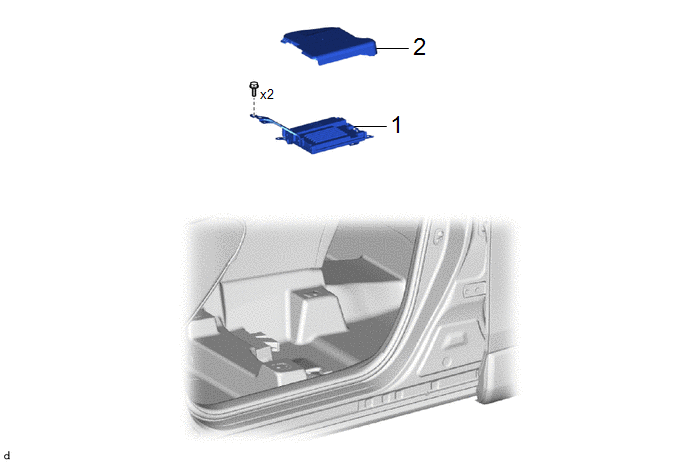

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

STEREO COMPONENT AMPLIFIER ASSEMBLY

86280K

-

-

-

2

AUDIO AMPLIFIER COVER

86183E

-

-

-

Procedure

Part Name Code

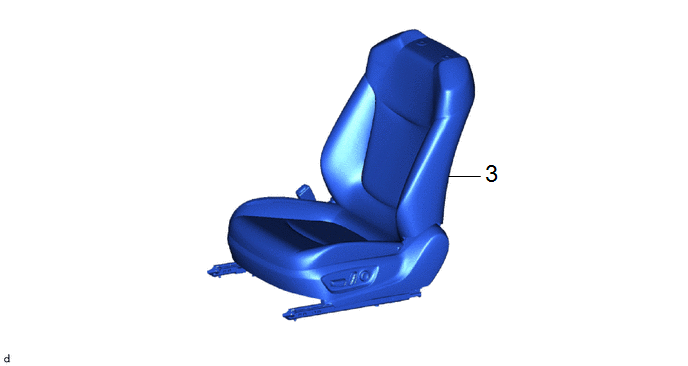

3

FRONT SEAT ASSEMBLY LH

-

-

-

-

PROCEDURE

1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

2. INSTALL AUDIO AMPLIFIER COVER

3. INSTALL FRONT SEAT ASSEMBLY LH

  • for Manual Seat:

    Click here

  • for Power Seat:

    Click here
