Toyota Corolla Cross (2022-2026) Service Manual / Audio & Visual & Telematics / Audio / Video / Roof Antenna / Installation

INSTALLATION

CAUTION / NOTICE / HINT

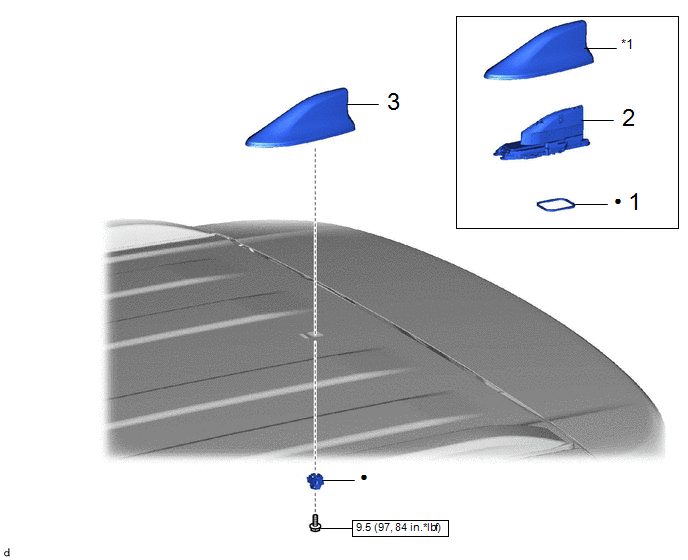

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SEAL

-

-

-

-

2

ROOF ANTENNA ASSEMBLY

86300J

-

-

-

3

ROOF ANTENNA ASSEMBLY WITH COVER

-

-

-

-

*1

COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Procedure

Part Name Code

4

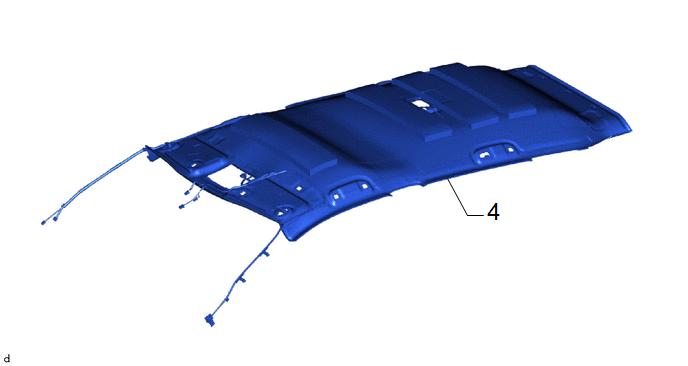

ROOF HEADLINING ASSEMBLY

-

-

-

-

PROCEDURE

1. INSTALL SEAL

2. INSTALL ROOF ANTENNA ASSEMBLY

3. INSTALL ROOF ANTENNA ASSEMBLY WITH COVER

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

4. INSTALL ROOF HEADLINING ASSEMBLY

Click here
