INSPECTION

PROCEDURE

1. INSPECT WINDSHIELD GLASS SUB-ASSEMBLY (for Cold Area Specification Vehicles)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A163-1 (B) - A163-2 (E)

Always

Below 1 Ω

If the result is not as specified, replace the windshield glass sub-assembly.

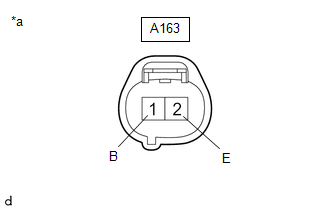

*a

Component without harness connected

(Windshield Glass Sub-assembly)
