Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR DRIVE SHAFT ASSEMBLY

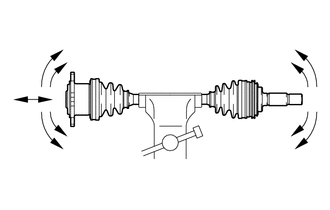

(a) Check that there is no excessive play in the radial direction of the outboard joint.

(b) Check that the inboard joint slides smoothly in the thrust direction.

(c) Check that there is no excessive play in the radial direction of the inboard joint.

(d) Check the boots for damage.

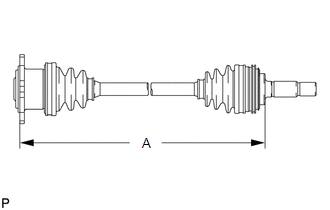

(e) Check whether each drive shaft dimension (A) is within specification.

Dimension (A):

502.1 to 512.1 mm (1.65 to 1.68 ft.)

NOTICE:

Keep the drive shaft assembly level during inspection.
