DISASSEMBLY

CAUTION / NOTICE / HINT

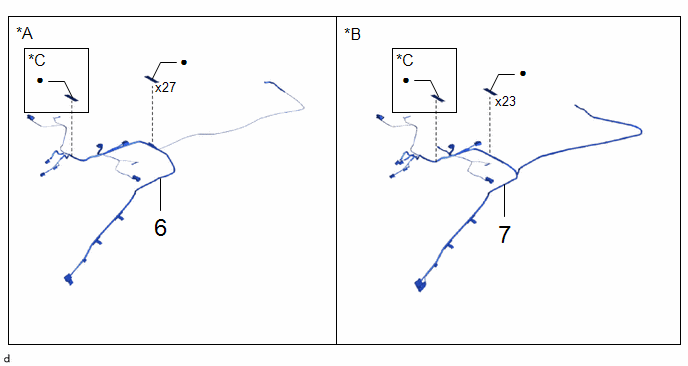

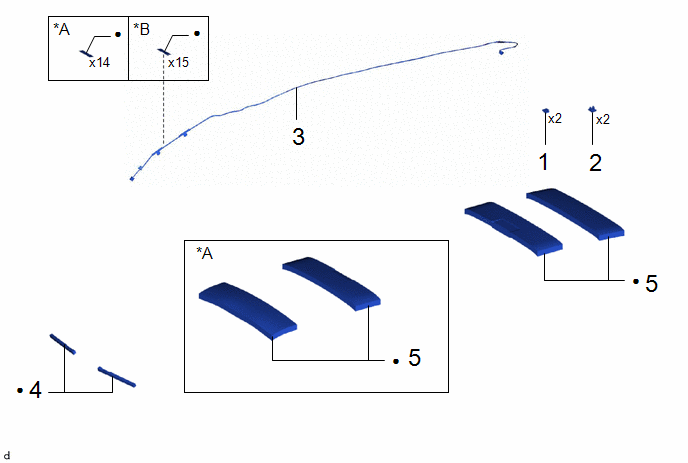

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

TELEPHONE MICROPHONE ASSEMBY

86730A

-

-

-

2

MICROPHONE CASE

86255F

-

-

-

3

NO. 2 ANTENNA CORD SUB-ASSEMBLY

86101J

-

-

-

4

ROOF HEADLINING PAD

63351B

-

-

-

5

NO. 2 ROOF SILENCER PAD

63342

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

●

Non-reusable part

-

-

Procedure

Part Name Code

6

NO. 1 ROOF WIRE

82171

-

-

-

7

NO. 1 ROOF WIRE

82171

-

-

-

*A

w/o Sliding Roof

*B

w/ Sliding Roof

*C

w/ EC Mirror

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE TELEPHONE MICROPHONE ASSEMBLY

Click here

2. REMOVE MICROPHONE CASE

(b) Use the same procedure for the opposite side.

3. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

Click here

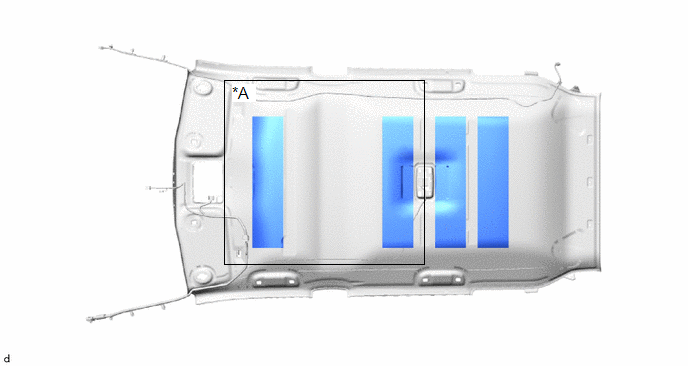

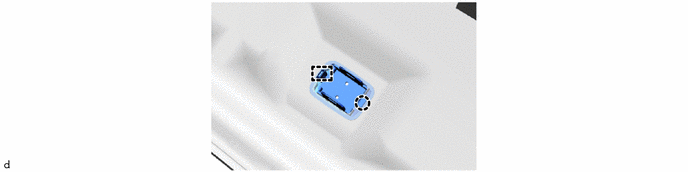

4. REMOVE ROOF HEADLINING PAD

5. REMOVE NO. 2 ROOF SILENCER PAD

*A

w/o Sliding Roof

-

-

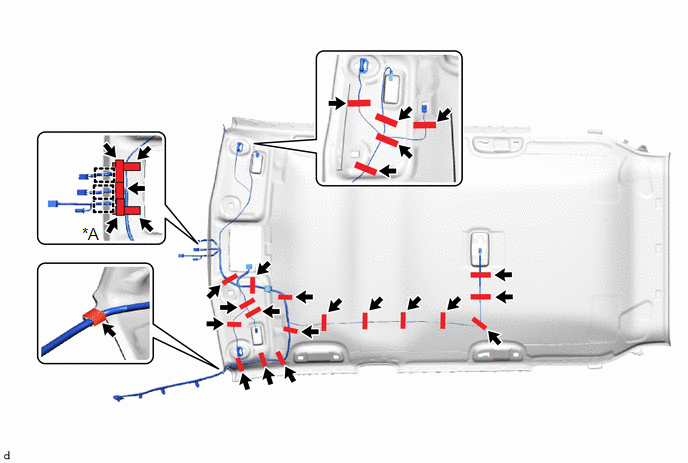

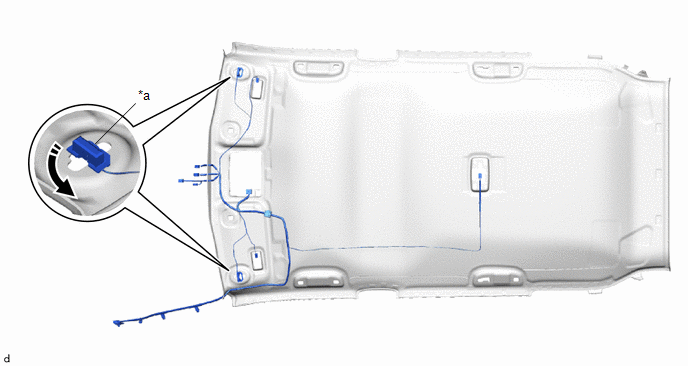

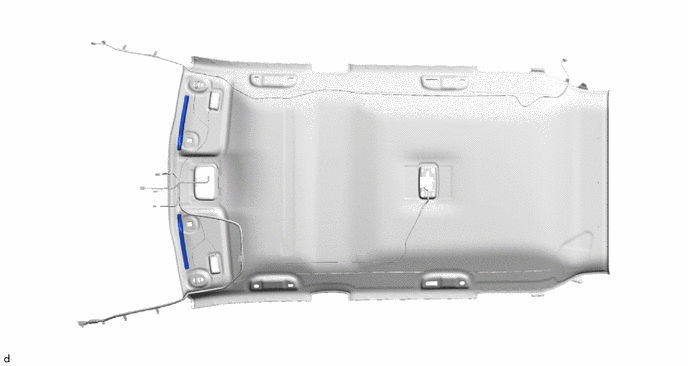

6. REMOVE NO. 1 ROOF WIRE (w/o Sliding Roof)

*a

Visor Connector

-

-

Remove in this Direction

-

-

*A

w/ EC Mirror

-

-

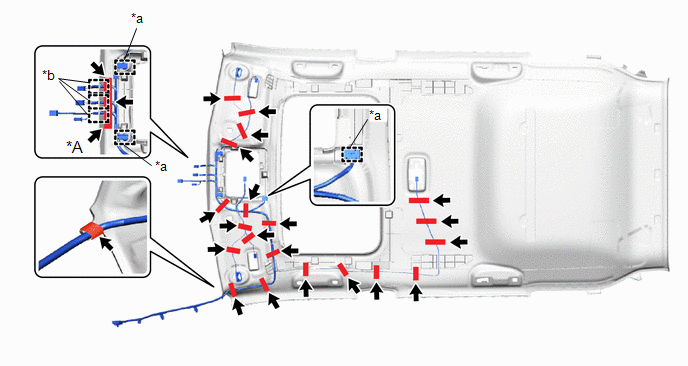

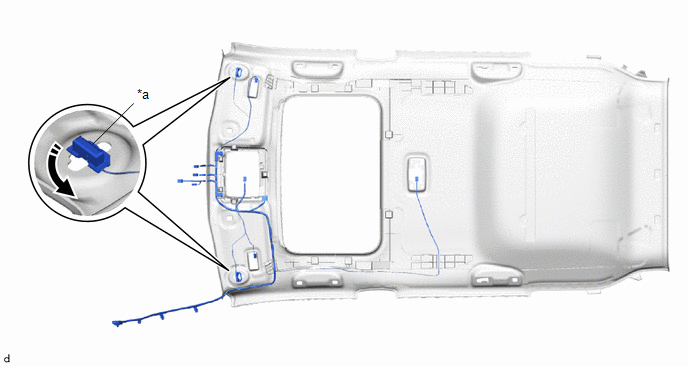

7. REMOVE NO. 1 ROOF WIRE (w/ Sliding Roof)

*a

Visor Connector

-

-

Remove in this Direction

-

-

*A

w/ EC Mirror

-

-

*a

Clamp

*b

Guide
