Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Back Door Outside Garnish / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

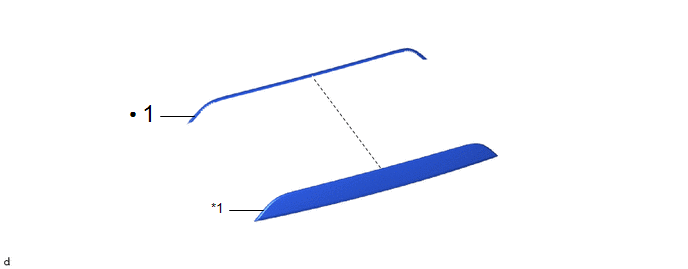

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

BACK DOOR OUTSIDE GARNISH PROTECTOR

76825

-

-

-

*1

BACK DOOR OUTSIDE GARNISH

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR
