Toyota Corolla Cross: Changing the vehicle-to-vehicle distance

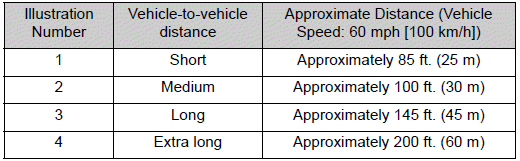

Each time the switch is pressed, the vehicle-to-vehicle distance setting will change as follows: If a preceding vehicle is detected, the preceding vehicle mark will be displayed.

Using the driving support systems

Using the driving support systems

The actual vehicle-to-vehicle distance varies in accordance with the vehicle speed. Also, when the vehicle is stopped by system control, it will be stopped at a certain distance from the preceding vehicle, depending on the situation, regardless of the setting.

■Operating conditions

  • The shift lever is in D.
  • The desired set speed can be set when the vehicle speed is approximately 20 mph (30 km/h) or more.
    • If the vehicle speed is set while driving at below approximately 20 mph (30 km/h), the set vehicle speed will be approximately 20 mph (30 km/h).
    • If the vehicle speed is set while driving at a speed that exceeds the system's upper limit, the set vehicle speed will be the system's upper limit.

■Accelerating after setting the vehicle speed

As with normal driving, acceleration can be performed by depressing the accelerator pedal. After accelerating, the vehicle will return to the set vehicle speed. However, while in vehicle-to-vehicle distance control mode, the vehicle speed may decrease to below the set vehicle speed in order to maintain the distance from the preceding vehicle.

■When the vehicle is stopped by system control during follow-up cruising

  • When the "+RES" switch is pressed while the vehicle is stopped by system control, if the preceding vehicle starts off within approximately 3 seconds, follow- up cruising will resume.
  • If the preceding vehicle starts off within approximately 3 seconds of the vehicle being stopped by system control, follow-up cruising will resume.

■Automatic cancellation of vehicle- to-vehicle distance control mode

In the following situations, vehicle- to-vehicle distance control mode will be canceled automatically:

  • When the brake control or output restriction control of a driving support system operates (For example: Pre-Collision System, drive-start control)
  • When the parking brake has been operated
  • When the vehicle is stopped by system control on a steep incline
  • When any of the following are detected while the vehicle is stopped by system control:
    • The driver's seat belt is unfastened
    • The driver's door is opened
    • Approximately 3 minutes have elapsed since the vehicle was stopped

The parking brake may be actived automatically.

  • Situations in which some or all of the functions of the system cannot operate

■Preceding vehicles that the sensor may not detect correctly

In the following situations, depending on the conditions, if the system cannot provide sufficient deceleration or acceleration is necessary, operate the brake pedal or accelerator pedal.

As the sensor may not be able to correctly detect these types of vehicles, the approach warning may not operate

  • When a vehicle cuts in front of your vehicle or changes lanes away from your vehicle extremely slowly or quickly
  • When changing lanes
  • When a preceding vehicle is driving at a low speed
  • When a vehicle is stopped in the same lane as the vehicle
  • When a motorcycle is traveling in the same lane as the vehicle

■Conditions under which the system may not operate correctly In the following situations, operate the brake pedal (or accelerator pedal, depending on the situation) as necessary.

As the sensor may not be able to correctly detect a vehicle, the system may not operate properly.

  • When a preceding vehicle brakes suddenly
  • When changing lanes at low speeds, such as in a traffic jam

Approach warning

In situations where the vehicle approaches a preceding vehicle and the system cannot provide sufficient deceleration, such as if a vehicle cuts in front of the vehicle, a warning display will flash and a buzzer will sound to alert the driver. Depress the brake pedal to ensure appropriate vehicle-to-vehicle distance.

■ Warnings may not occur when

In the following situations, the warning may not operate even though the vehicle-to-vehicle distance is short.

  • When the preceding vehicle is traveling at the same speed or faster than your vehicle
  • When the preceding vehicle is traveling at an extremely low speed
  • Immediately after the vehicle speed has been set
  • When the accelerator pedal is depressed

Curve speed reduction function

When a curve is detected, the vehicle speed will begin being reduced. When the curve ends, the vehicle speed reduction will end.

Depending on the situation, the vehicle speed will then return to the set vehicle speed.

In situations where vehicle-to-vehicle distance control needs to operate, such as when a preceding vehicle cuts in front of your vehicle, the curve speed reduction function will be canceled.

Using the driving support systems

■Situations in which the curve speed reduction function may not operate

In situations such as the following, the curve speed reduction function may not operate:

  • When the vehicle is being driven around a gentle curve
  • When the accelerator pedal is being depressed
  • When the vehicle is being driven around an extremely short curve

Support for lane change

If your vehicle is being driven at approximately 50 mph (80 km/h) or more and a lane change to the passing lane is performed, when the turn signal lever is operated and the lane is changed, the vehicle will accelerate up to the set speed to assist in overtaking.

The system's recognition of which lane is the passing lane may be based solely on the location of the steering wheel in the vehicle (left-hand drive/right-hand drive). If the vehicle is driven in a location where the passing lane is on the opposite side of that where the vehicle was originally sold, the vehicle may accelerate when the turn signal lever is operated away from the passing lane. (e.g. The vehicle was manufactured for a right-hand traffic location, but is being driven in a left-hand traffic location. The vehicle may accelerate when the turn signal lever is operated to the right.) If your vehicle is being driven at approximately 50 mph (80 km/h) or more and the lane is changed to that with a vehicle traveling slower than your vehicle, when the turn signal lever is operated the vehicle will gradually decelerate to assist in changing lanes.

Changing Dynamic radar cruise control settings

  • The settings of Dynamic radar cruise control can be changed through customize settings.

Display and system operation state

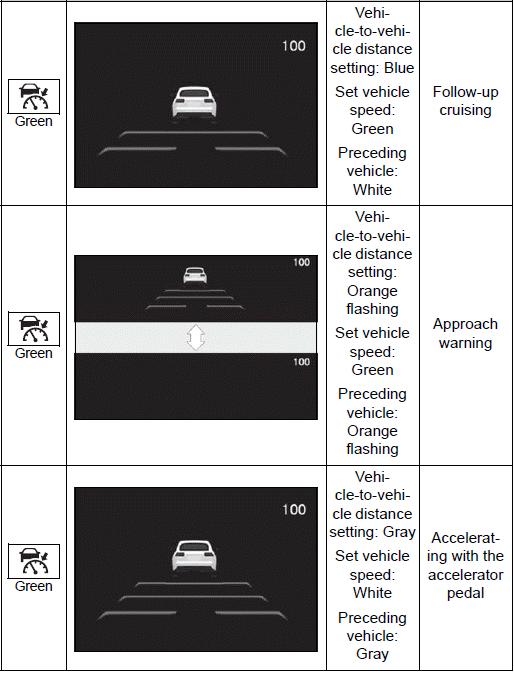

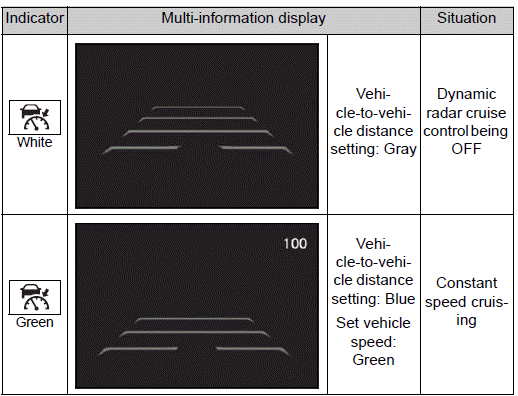

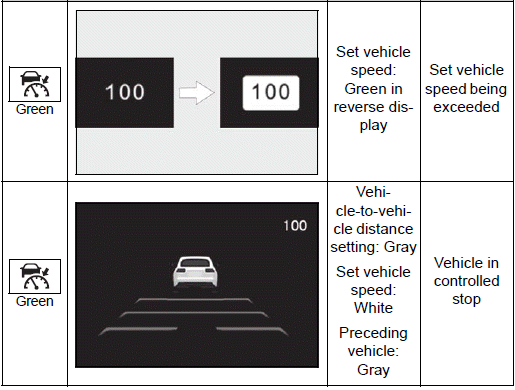

The operating state of Dynamic radar cruise control is indicated.

Using the driving support systems

Using the driving support systems

Using the driving support systems
