Toyota Corolla Cross: Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and outside rear view mirrors inform the driver of the status of the vehicle's various systems.

Warning lights and indicators displayed on the instrument cluster

For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.

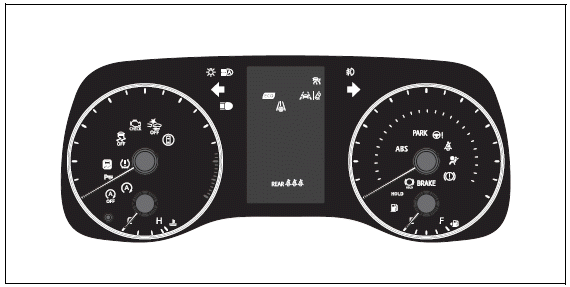

4.2-inch display

Vehicle status information and indicators

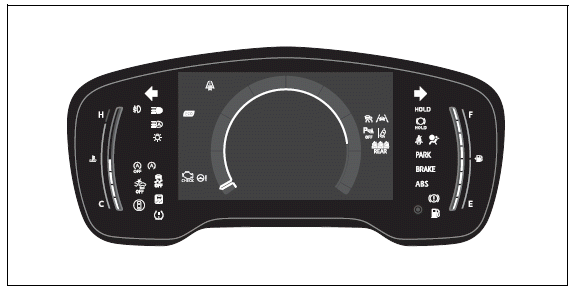

7-inch display

Vehicle status information and indicators
