Toyota Corolla Cross: Turning the Safe exit assist system ON/OFF

The safe exit assist can be enabled/disabled on of the multi-information display.

When the safe exit assist is off, the driving assist information indicator will illuminate. At this time, "Safe Exit Assist OFF" will be displayed on the multi-information display. Each time the engine switch is turned to ON, the safe exit assist is enabled.

■ Objects that can be detected by the Safe exit assist

When the safe exit assist detects the following vehicles or bicycles behind your vehicle using a rear side radar sensor, the occupants of the vehicle are informed through an outside rear view mirror indicator, buzzer, and the multi-information display.

Using the driving support systems

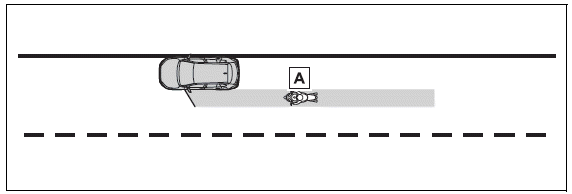

  1. Vehicle or bicycle which has a high possibility of colliding with a door (other than the back door) when opened

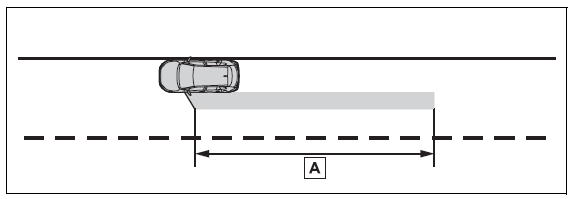

■ The Safe exit assist detection areas

The areas that vehicles can be detected in are outlined below.

Using the driving support systems

  1. Approximately 145 ft. (45 m) rearward from the front door*

*: The faster a vehicle or bicycle is approaching, the distance at which an outside rear view mirror indicator will illuminate or blink will become further.

■The Safe exit assist is operational when

The Safe exit assist is operational when all of the following conditions are met:

  • When the engine switch is ON, less than 3 minutes have elapsed since the engine was off, or less than 3 minutes have elapsed since a door was opened and someone has entered the vehicle (the time which operation is possible may be extended if a door is opened and closed)
  • Safe exit assist is on
  • The vehicle is stopped.
  • The shift lever is in a position other than R.

■The Safe exit assist will detect a vehicle when

The Safe exit assist will detect a vehicle present in the detection area in the following situations:

  • When the vehicle is stopped and a vehicle or bicycle, which is traveling parallel to the vehicle, is approaching within the area that a door opens (other than the back door)

■Conditions under which the system will not detect a vehicle

  • Safe exit assist does not detect the following objects, vehicles, and bicycles:
    • Vehicles or bicycles which are approaching slowly*
    • Vehicles or bicycles which are determined to have a low possibility of colliding with a door (other than the back door) when opened*
    • Vehicles or bicycles which are approaching from directly behind*
    • Vehicles or bicycles which are approaching from the front*
    • Guardrails, walls, signs, parked vehicles, and other stationary objects*
    • Pedestrians, animals, etc.*

*: Depending on the conditions, detection of a vehicle and/orobject may occur.

  • In situations such as the following, safe exit assist will not operate:
    • When 3 minutes or more have elapsed since the engine off (the time which operation is possible may be extended if a door is opened and closed)
    • When your vehicle is not completely stopped

■Conditions under which the system may not function correctly

  • The Safe exit assist may not detect vehicles correctly in the following situations:
    • When the sensor is misaligned due to a strong impact to the sensor or its surrounding area
    • When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area on the rear bumper
    • When the vehicle is stopped on a wet road surface, such as in a puddle, while in inclement weather, such as heavy rain, snow, fog, etc.
    • When a vehicle or bicycle approaches from behind a nearby parked vehicle
    • When an approaching vehicle or bicycle suddenly changes direction
    • Immediately after a vehicle or bicycle starts moving
    • When the back door is open
    • When a bicycle carrier, ramp, or other accessory is installed to the back of the vehicle
    • When a parked vehicle, wall, sign, person or other stationary object is behind the vehicle
    • When the vehicle is stopped at an angle to the road
    • When a vehicle is traveling near an approaching vehicle or bicycle
    • When an approaching vehicle or bicycle is traveling along a stationary object, such a wall or sign
    • When a vehicle or bicycle is approaching at high speed
    • When towing with the vehicle
    • When stopped on a steep slope
    • When stopped on a curve or at the exit of a curve
  • Instances of the Safe exit assist unnecessarily detecting a vehicle and/or object may increase in the following situations:
    • When the sensor is misaligned due to a strong impact to the sensor or its surrounding area
    • When a vehicle or bicycle approaches from behind your vehicle at an angle
    • When the vehicle is stopped at an angle to the road
    • When a vehicle or bicycle approaches from behind a parked vehicle at an angle
    • When a parked vehicle, wall, sign, person or other stationary object is behind the vehicle
    • When an approaching vehicle or bicycle suddenly changes direction
    • When an approaching vehicle or bicycle is traveling along a stationary object, such a wall or sign
    • When the back door is open
    • When a bicycle carrier, ramp, or other accessory is installed to the back of the vehicle
    • When a vehicle or bicycle is approaching at high speed
    • When towing with the vehicle
    • When stopped on a steep slope
    • When stopped on a curve or at the exit of a curve
