TERMINALS OF ECU

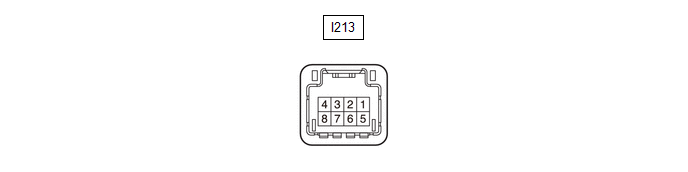

CHECK MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I213-1 (PGND) - Body ground

Ground

Always

Below 1 Ω

I213-2 (ILL-) - Body ground

Ground

Always

Below 1 Ω

I213-5 (ACC) - Body ground

Power source (ACC)

Ignition switch ON (ACC)

11 to 14 V

Ignition switch off

Below 1 V

I213-6 (B+) - Body ground

Power source (+B)

Ignition switch off

11 to 14 V

I213-7 (TAIL) - Body ground

Illumination signal

Light control switch in off position

Below 1 V

Ignition switch off, light control switch in tail or head position

11 to 14 V

I213-8 (DIS) - Body ground

Charging suspension signal

For 1 seconds after turning ignition switch from off to ON (ACC)*1

4.5 to 6.0 V

Device being charged

Below 1 V

Charging suspended due to smart key system status*2

4.5 to 6.0 V

  • *1: When the ignition switch is turned from off to ON (ACC), the mobile wireless charger cradle assembly monitors the charging suspension signal for 5 seconds. If the charging suspension signal is not 4 V or more for 0.8 seconds or more during monitoring, the mobile wireless charger cradle assembly determines that there is an open in the charging suspension signal line, blinks (pattern 1) the indicator light (amber), and prohibits operation until the ignition switch is turned from off to ON (ACC) again.
  • *2: For details about conditions when the certification ECU (smart key ECU assembly) sends the charging suspension signal, refer to System Description.
