Toyota Corolla Cross: System Diagram

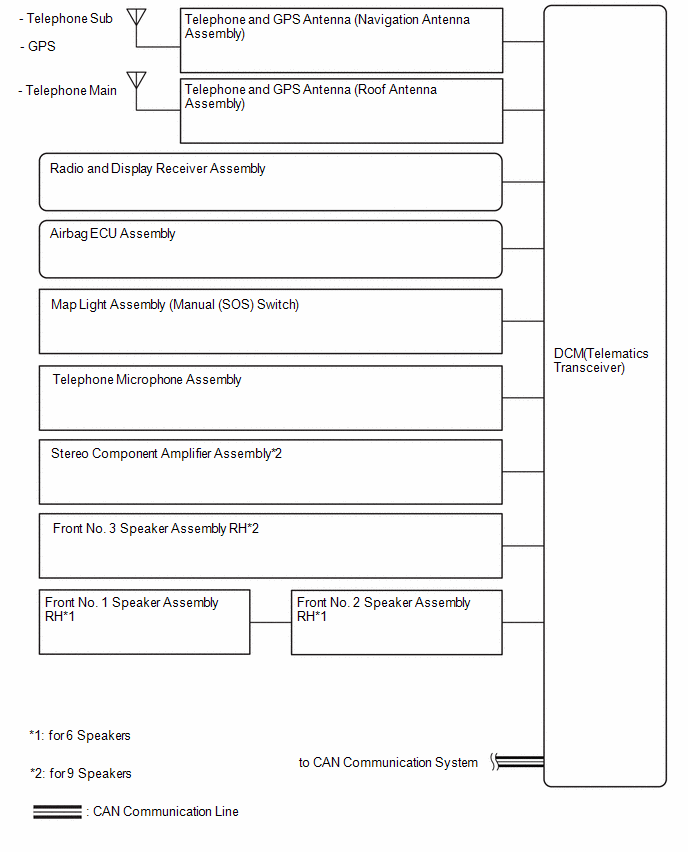

SYSTEM DIAGRAM

    READ NEXT:

     System Description

    SYSTEM DESCRIPTION DESCRIPTION (a) Safety Connect performs ACN (Automatic Collision Notification), manual emergency calling, stolen vehicle tracking and roadside assistance service, by audio and

     How To Proceed With Troubleshooting

    CAUTION / NOTICE / HINT HINT: Use the following procedure to troubleshoot the safety connect system. *: Use the GTS. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP

     Dcm Operation History

    DCM OPERATION HISTORY HINT: This function shows the telematics network status when the DCM (telematics transceiver) was operated. Use this when no DTC is present but this telematics syste
