Toyota Corolla Cross: Parts Location

PARTS LOCATION

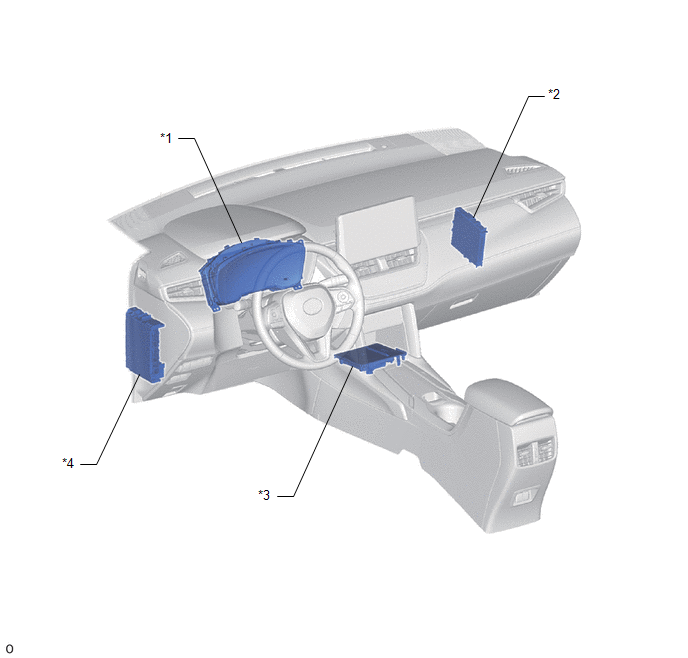

ILLUSTRATION

*1

COMBINATION METER ASSEMBLY

*2

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*3

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

*4

POWER DISTRIBUTION BOX ASSEMBLY

- ECU ACC FUSE

- ECU-B NO. 2 FUSE
