Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F-1 - F-3

Seat heater temperature 20°C (68°F)

3.3 to 4.0 Ω

F-2 - F-3

Seat heater temperature 20°C (68°F)

1.7 to 2.0 Ω

If the result is not as specified, replace the front seatback heater assembly LH.

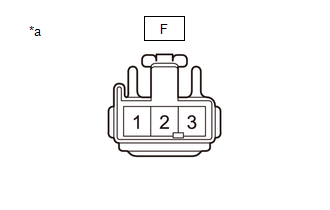

*a

Component without harness connected

(Front Seatback Heater Assembly LH)

2. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G-1 - G-3

Seat heater temperature 20°C (68°F)

3.3 to 4.0 Ω

G-2 - G-3

Seat heater temperature 20°C (68°F)

1.7 to 2.0 Ω

If the result is not as specified, replace the front seatback heater assembly RH.

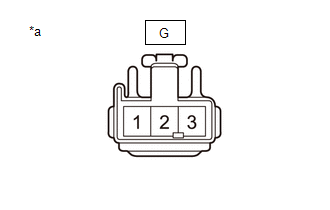

*a

Component without harness connected

(Front Seatback Heater Assembly RH)
