Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Seat / Front Seat Cushion Heater (for Manual Seat) / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

(a) Measure the resistance according to the value(s) in the table below.

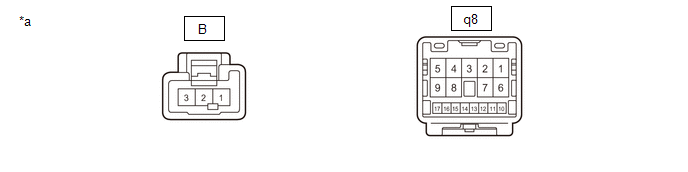

*a

Component without harness connected

(Front Seat Cushion Heater Assembly LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

B-1 - q8-5

Seat heater temperature 20°C (68°F)

2.9 to 3.4 Ω

B-2 - q8-7

Seat heater temperature 20°C (68°F)

1.6 to 1.9 Ω

If the result is not as specified, replace the front seat cushion heater assembly LH.

2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH

(a) Measure the resistance according to the value(s) in the table below.

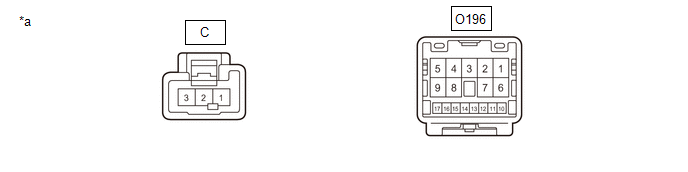

*a

Component without harness connected

(Front Seat Cushion Heater Assembly RH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

C-1 - O196-5

Seat heater temperature 20°C (68°F)

2.9 to 3.4 Ω

C-2 - O196-7

Seat heater temperature 20°C (68°F)

1.6 to 1.9 Ω

If the result is not as specified, replace the front seat cushion heater assembly RH.
