Toyota Corolla Cross: Disposal

DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

PROCEDURE

1. PRECAUTION

CAUTION:

  • An airbag or pretensioner may be accidentally deployed by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.

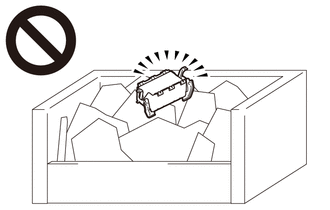

  • Never dispose of an instrument panel passenger airbag assembly with an undeployed airbag.

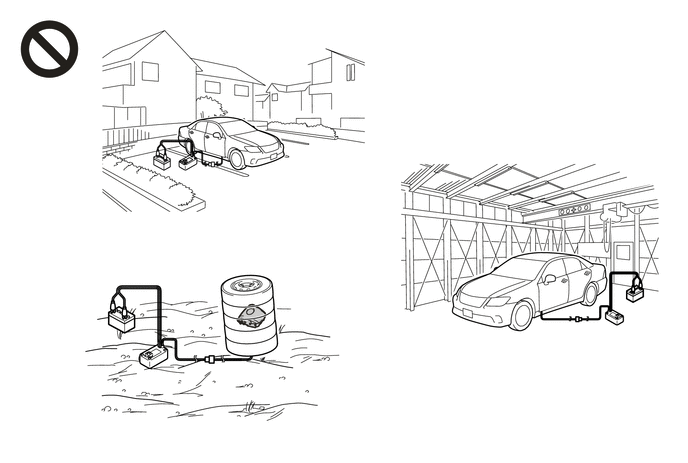

  • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors where it will not disturb nearby residents.
  • When deploying the airbag, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical noise.
  • When deploying the airbag, perform the operation at least 10 m (32.8 ft.) away from the instrument panel passenger airbag assembly.

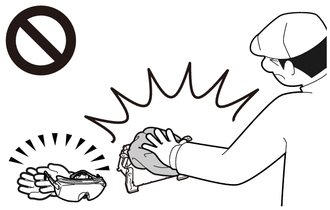

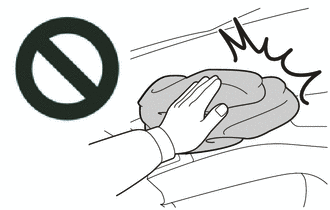

  • The instrument panel passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • Use gloves and safety glasses when handling an instrument panel passenger airbag assembly with a deployed airbag.
  • Do not apply water, etc. to an instrument panel passenger airbag assembly with a deployed airbag.
  • Always wash your hands with water after completing the operation.

HINT:

When scrapping a vehicle equipped with an SRS or disposing of the instrument panel passenger airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

2. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (When Installed to Vehicle)

NOTICE:

  • When disposing of an instrument panel passenger airbag assembly, never use the customer's vehicle to deploy the airbag.
  • Be sure to perform the following procedure when deploying the airbag.

HINT:

Prepare an auxiliary battery as the power source to deploy the airbag.

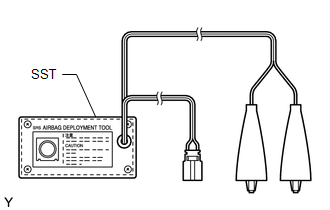

(a) Check the function of SST.

Click here

SST: 09082-00700

(b) Refer to Precaution.

Click here

(c) Disconnect the cable from the negative (-) auxiliary battery terminal.

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

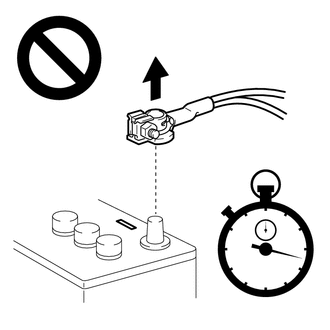

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

(d) Remove the lower No. 2 instrument panel finish panel.

Click here

HINT:

Perform the linked removal procedures until the lower No. 2 instrument panel finish panel step.

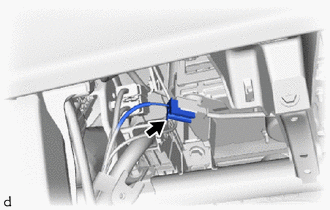

(e) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(f) Install SST.

CAUTION:

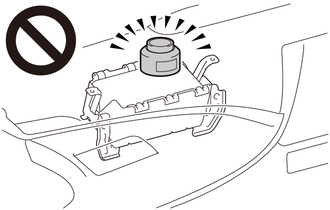

  • Do not place objects on top of the airbag door.
  • If deployed with an object on top of the airbag door, the door glass and windshield may break and fly off, causing serious injuries.

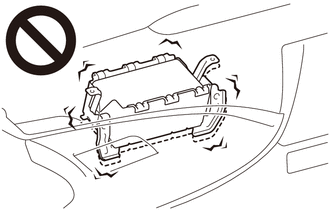

  • Do not deploy if the instrument panel passenger without door airbag assembly is loose.
  • If deployed while the instrument panel passenger without door airbag assembly is loose, the instrument panel passenger without door airbag assembly may fly off and cause serious injuries.

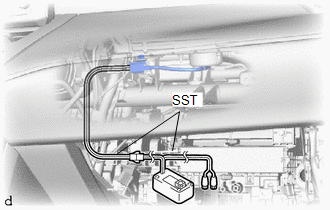

(1) Connect the SST connector to the No. 2 instrument panel wire.

SST: 09082-00760

(2) Connect the SST together (09082-00700 and 09082-00760).

SST: 09082-00700

NOTICE:

To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

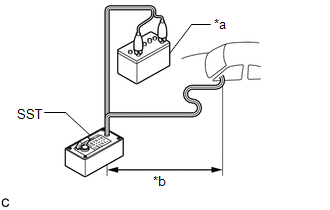

(3) Move SST at least 10 m (32.8 ft.) away from the front side window of the vehicle.

*a

Auxiliary Battery

*b

10 m (32.8 ft.) or more

(4) While maintaining sufficient clearance for SST wire harness in the front side window, close all doors and windows of the vehicle.

CAUTION:

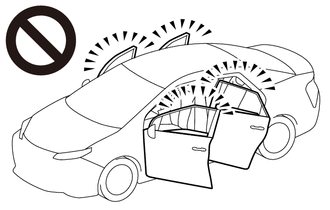

  • Do not deploy with all the doors and door windows open.
  • If deployed with all the doors and door windows open, dust and gas may enter the eyes or be breathed in.

NOTICE:

Take care not to damage SST wire harness.

(5) Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

(g) Deploy the airbag.

(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Press the SST activation switch to deploy the airbag.

CAUTION:

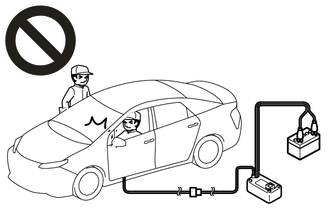

  • Do not deploy with people inside or around the vehicle.
  • If deployed with people inside or around the vehicle, serious injuries may occur.

HINT:

The airbag is deployed as the LED of SST activation switch comes on.

(h) Remove the instrument panel passenger airbag assembly.

Click here

CAUTION:

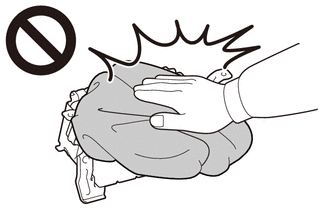

  • The instrument panel passenger without door airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • If not left alone for 30 minutes or more, burns may occur when touched.

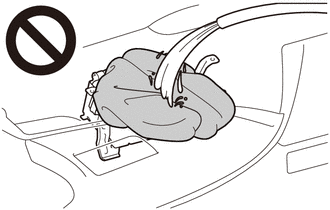

  • Do not apply water etc. to an instrument panel passenger without door airbag assembly with a deployed airbag.
  • If water is applied to the instrument panel passenger without door airbag assembly immediately after deployment, burns may occur from the resulting steam.

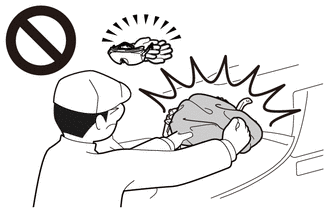

  • Always wear safety glasses and gloves when handling a deployed instrument panel passenger without door airbag assembly.
  • If the instrument panel passenger without door airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.
  • After removal, quickly seal the instrument panel passenger without door airbag assembly in a plastic bag.

(i) Dispose of the instrument panel passenger without door airbag assembly.

(1) Place the instrument panel passenger without door airbag assembly in a plastic bag, tie it tightly and dispose of it according to local regulations.

CAUTION:

  • The instrument panel passenger without door airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • If not left alone for 30 minutes or more, burns may occur when touched.
  • Do not apply water etc. to an instrument panel passenger without door airbag assembly with a deployed airbag.
  • If water is applied to the instrument panel passenger without door airbag assembly immediately after deployment, burns may occur from the resulting steam.
  • Always wear safety glasses and gloves when handling a deployed instrument panel passenger without door airbag assembly.
  • If the instrument panel passenger without door airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.
  • Never dispose of an instrument panel passenger without door airbag assembly with an undeployed airbag.
  • If an undeployed instrument panel passenger without door airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.
  • Always wash your hands with water after completing the operation.

3. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (When not Installed to Vehicle)

NOTICE:

Be sure to perform the following procedure when deploying the airbag.

HINT:

  • Prepare a battery as the power source to deploy the airbag.
  • In this procedure, the inflator of the front passenger airbag assembly is deployed first. Next, the actuator is deployed.

(a) Check the function of SST.

Click here

SST: 09082-00700

(b) Refer to Precaution.

Click here

(c) Disconnect the cable from the negative (-) auxiliary battery terminal.

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

(d) Remove the instrument panel passenger airbag assembly.

Click here

(e) Install SST.

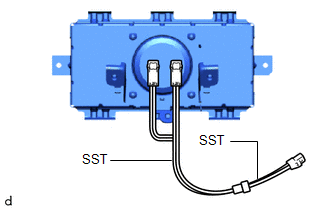

(1) After connecting the following SST to each other, connect them to the instrument panel passenger airbag assembly.

SST: 09082-00802

09082-10801

09082-30801

(f) Using braided wire, tie down the instrument panel passenger airbag assembly to an unneeded tire.

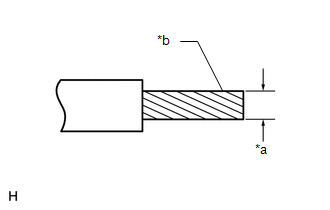

*a

Wire Diameter

*b

Stripped Wire Cross Sectional Area

Wire:

Stripped Wire Cross Sectional Area

1.25 mm2 (0.0019 in.2) or more

CAUTION:

If the wire is too thin or an alternative object is used to tie down the instrument panel passenger airbag assembly, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT:

To calculate the cross sectional area of the stripped wire:

Cross sectional area = 3.14 x (Diameter)2 / 4

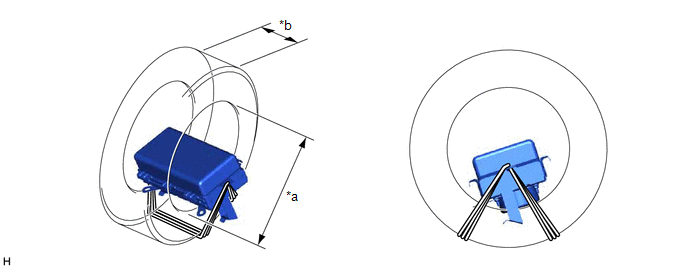

(1) Position the instrument panel passenger airbag assembly inside the tire with the airbag deployment side facing inward.

Minimum Tire Size:

Width

185 mm (7.28 in.)

Inner Diameter

360 mm (1.18 ft.)

*a

Inner Diameter

*b

Width

CAUTION:

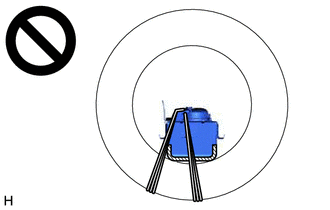

  • Do not install the instrument panel passenger without door airbag assembly with the deployment side facing outside.
  • When securing the instrument panel passenger without door airbag assembly, make sure there is no looseness in the wire harness.

    Deployment Side

  • If the deployment side is facing outside or the wire harness is loosely wrapped, the deployed instrument panel passenger without door airbag assembly and tire may fly off and cause serious injuries.

NOTICE:

The tire may be damaged by the airbag deployment, so use an unneeded tire.

(g) Place the tires.

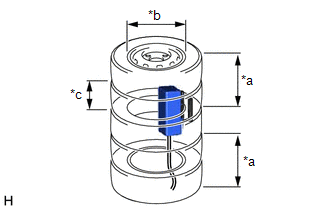

(1) Place at least 2 tires under the tire to which the instrument panel passenger airbag assembly is tied.

Minimum Tire Size:

Width

185 mm (7.28 in.)

Inner Diameter

360 mm (1.18 ft.)

NOTICE:

Do not place the SST connector under the tire because it could be damaged.

*a

Tires (2 or more)

*b

Inner Diameter

*c

Width

(2) Place at least 2 tires onto the tire to which the instrument panel passenger airbag assembly is tied. The top tire should have a wheel installed.

NOTICE:

The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

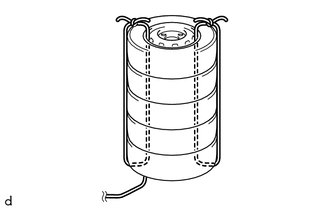

(3) Tie the tires together with 2 wires.

CAUTION:

Make sure that the wires are tight. Looseness in the wires will result in the tires breaking loose when the airbag is deployed.

(h) Install SST.

(1) Connect the SST connector.

SST: 09082-00700

NOTICE:

To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.

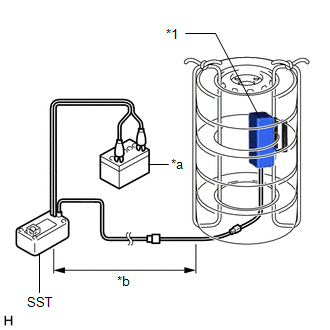

*1

Instrument Panel Passenger Airbag Assembly

*a

Auxiliary Battery

*b

10 m (32.8 ft.) or more

(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

(i) Deploy the airbag.

(1) Connect the red clip of SST to the positive (+) auxiliary battery terminal and the black clip of SST to the negative (-) auxiliary battery terminal.

(2) Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the instrument panel passenger airbag assembly is tied.

(3) Press the SST activation switch to deploy the airbag.

CAUTION:

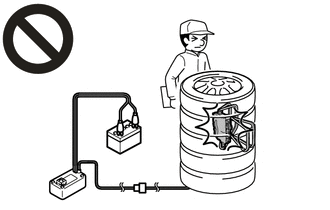

  • Do not deploy with people around the tire.
  • If deployed with people around the tire, serious injuries may occur.

HINT:

The airbag is deployed as the LED of the SST activation switch comes on.

(j) Dispose of the instrument panel passenger airbag assembly.

CAUTION:

  • The instrument panel passenger without door airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
  • If not left alone for 30 minutes or more, burns may occur when touched.

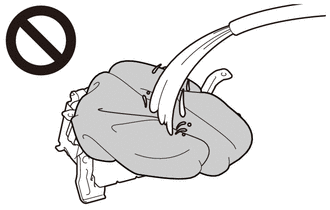

  • Do not apply water etc. to an instrument panel passenger without door airbag assembly with a deployed airbag.
  • If water is applied to the instrument panel passenger without door airbag assembly immediately after deployment, burns may occur from the resulting steam.
  • Always wear safety glasses and gloves when handling a deployed instrument panel passenger without door airbag assembly.
  • If the instrument panel passenger without door airbag assembly is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.
  • Never dispose of an instrument panel passenger without door airbag assembly with an undeployed airbag.
  • If an undeployed instrument panel passenger without door airbag assembly is disposed of, and then deploys for any reason, unforeseen injuries may occur.
  • Always wash your hands with water after completing the operation.

(1) Remove the instrument panel passenger airbag assembly from the tire.

(2) Place the instrument panel passenger airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations.
