Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Interior Panels / Trim / Instrument Panel Safety Pad / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

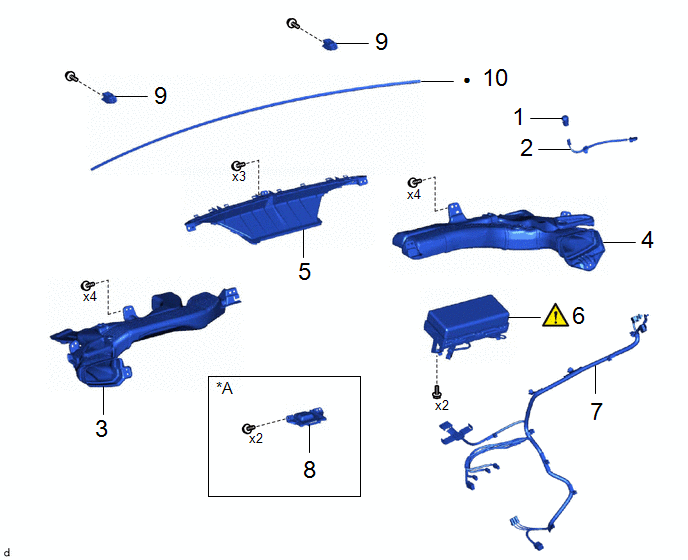

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

AUTOMATIC LIGHT CONTROL SENSOR

89120A

-

-

-

2

NO. 2 INSTRUMENT PANEL WIRE

82142A

-

-

-

3

NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55084E

-

-

-

4

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55085

-

-

-

5

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

6

INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

73960A

-

-

7

ANTENNA CORD SUB-ASSEMBLY

86101

-

-

-

8

NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

-

-

-

-

9

NO. 1 INSTRUMENT PANEL PIN

55328

-

-

-

10

INSTRUMENT PANEL CUSHION

55349A

-

-

-

*A

w/ Navigation Antenna

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

Click here

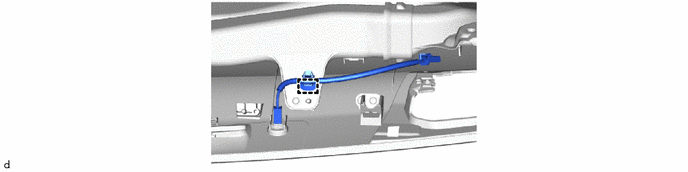

2. REMOVE NO. 2 INSTRUMENT PANEL WIRE

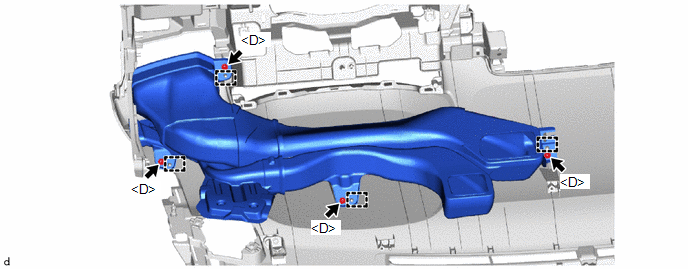

3. REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

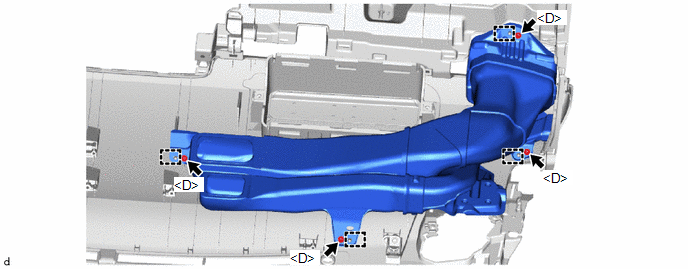

4. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

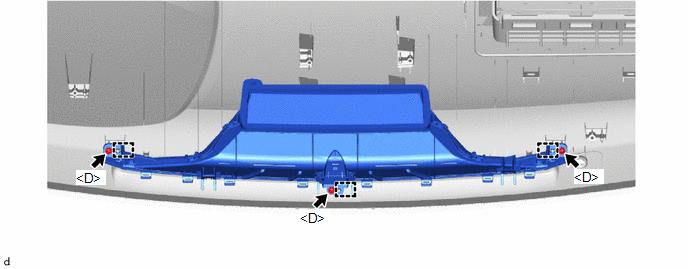

5. REMOVE DEFROSTER NOZZLE ASSEMBLY

6. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Click here

7. REMOVE ANTENNA CORD SUB-ASSEMBLY

Click here

8. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET (w/ Navigation Antenna)

Click here

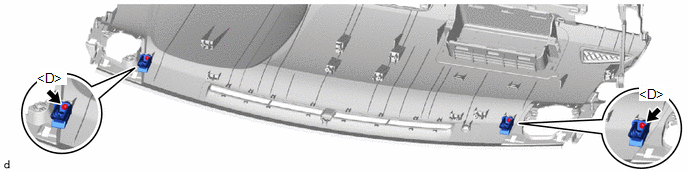

9. REMOVE NO. 1 INSTRUMENT PANEL PIN

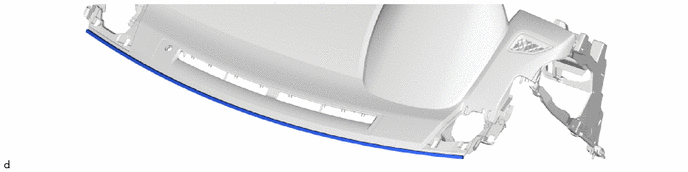

10. REMOVE INSTRUMENT PANEL CUSHION
