Toyota Corolla Cross: Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery (P212012,...,P21382B)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Control System / Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery (P212012,...,P21382B)

DTC SUMMARY

MALFUNCTION DESCRIPTION

The hybrid vehicle control ECU calculates the accelerator pedal opening angle based on the output voltage of the main sensor (VPA) and sub sensor (VPA2) of the accelerator pedal (with sensor) rod assembly. If the output voltage of either the main sensor (VPA) or sub sensor (VPA2) deviates, a malfunction will be detected.

The cause of this malfunction may be one of the following:

  • Accelerator pedal (with sensor) rod assembly malfunction
  • Wire harness or connector malfunction
  • Hybrid vehicle control ECU malfunction

DESCRIPTION

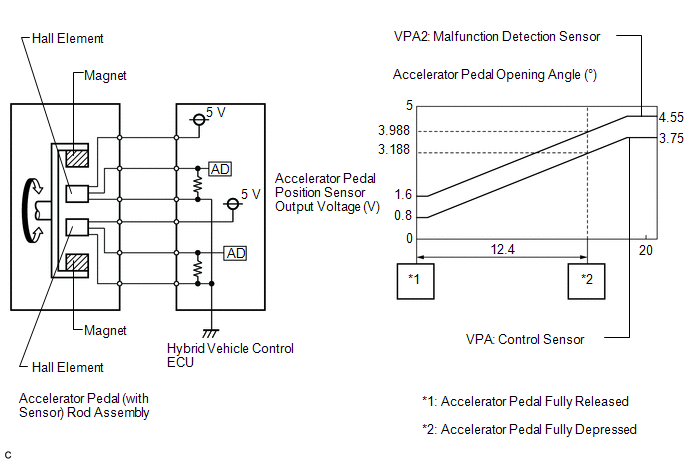

The accelerator pedal position sensor is built into the accelerator pedal (with sensor) rod assembly and detects how much the pedal is depressed. This is a non-contact sensor with Hall elements. There are 2 outputs from the sensor. One is used to detect the accelerator pedal position and the other is used as a confirmation to allow the detection of a malfunction in the sensor itself. Voltage is output from the accelerator pedal position sensor to terminals VPA and VPA2 of the hybrid vehicle control ECU. This voltage varies from 0 to 5 V in accordance with the accelerator pedal position. Terminal VPA2 is primarily used to detect a malfunction in the sensor itself. The hybrid vehicle control ECU determines the current accelerator pedal position and controls the hybrid control system based on signals received by terminals VPA and VPA2.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

Note

P212012

Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery

Short to +B in the main sensor circuit:

The main sensor voltage is 4.8 V or more for 2 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2123

P212014

Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Ground or Open

Open or short to ground in the main sensor circuit:

The main sensor voltage is 0.4 V or less for 0.5 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2122

P21201C

Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range

Internal malfunction in the main sensor:

Main sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2121

P21201F

Throttle/Pedal Position Sensor/Switch "D" Circuit Intermittent

Main sensor circuit wiring malfunction or level is not stable:

Main sensor voltage is 0.4 V or less or 4.8 V or more for a certain period of time.

(Both of the following conditions are met: The main sensor voltage is 0.4 V or less for a certain period of time and 4.8 V or more for a certain period of time.)

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2120

P212512

Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Auxiliary Battery

Short to +B in the sub sensor circuit:

Main sensor is normal and sub sensor voltage is 4.8 V or more for 2 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2128

P212514

Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Ground or Open

Open or short to ground in the sub sensor circuit:

The sub sensor voltage is 1.2 V or less for 0.5 seconds.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2127

P21251C

Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range

Internal malfunction of the sub sensor:

Sub sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2126

P21251F

Throttle/Pedal Position Sensor/Switch "E" Circuit Intermittent

Sub sensor circuit wiring malfunction or level is not stable:

When the main sensor circuit is normal, the sub sensor voltage is 1.2 V or less or 4.8 V or more for a certain period of time.

(Both of the following conditions are met: Sub sensor voltage is 1.2 V or less for a certain period of time, and the main sensor is normal and sub sensor voltage is 4.8 V or more for a certain period of time.)

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2125

P213800

Throttle/Pedal Position Sensor/Switch "D"/" E" Voltage Correlation

Difference between the main sensor value and sub sensor value is large.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2138

P21382B

Throttle/Pedal Position Sensor/Switch "D"/"E" Signal Cross Coupled

Main or sub sensor circuit wiring malfunction:

The difference in voltage between the main sensor and sub sensor is 0.02 V or less, or a low output malfunction continues in both the main and sub sensors for a certain period of time.

(1 trip detection logic)

  • Wire harness or connector
  • Accelerator pedal (with sensor) rod assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P2138

MONITOR DESCRIPTION

The hybrid vehicle control ECU calculates the differences of the voltage of main accelerator sensor and sub accelerator sensor. If the differences exceed prescribed values, the hybrid vehicle control ECU determines that there is a malfunction in the accelerator sensor circuit. If the hybrid vehicle control ECU detects this malfunction, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P2123 (INF P212012): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (High voltage)

P2122 (INF P212014): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Low voltage)

P2121 (INF P21201C): Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range

P2120 (INF P21201F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Chattering)

P2128 (INF P212512): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (High voltage)

P2127 (INF P212514): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Low voltage)

P2126 (INF P21251C): Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range

P2125 (INF P21251F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Chattering)

P2138 (INF P213800): Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation

P2138 (INF P21382B): Accelerator Pedal Position Sensor (APP Sensor) Correlation

Required sensors/components

Throttle/Pedal Position Sensor/Switch

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

Immediately / 1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Hybrid vehicle control ECU

DTC P2123 (INF P212012) is not detected

DTC P2122 (INF P212014) is not detected

DTC P2121 (INF P21201C) is not detected

DTC P2120 (INF P21201F) is not detected

DTC P2128 (INF P212512) is not detected

DTC P2127 (INF P212514) is not detected

DTC P2126 (INF P21251C) is not detected

DTC P2125 (INF P21251F) is not detected

DTC P2138 (INF P213800) is not detected

DTC P2138 (INF P21382B) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 2 minutes or more.
  5. Turn the ignition switch to ON and turn the GTS on.
  6. Wait for approximately 10 seconds with the ignition switch ON (READY) and shift lever in P, then fully depress and release the accelerator pedal several times.[*1]

    HINT:

    [*1]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

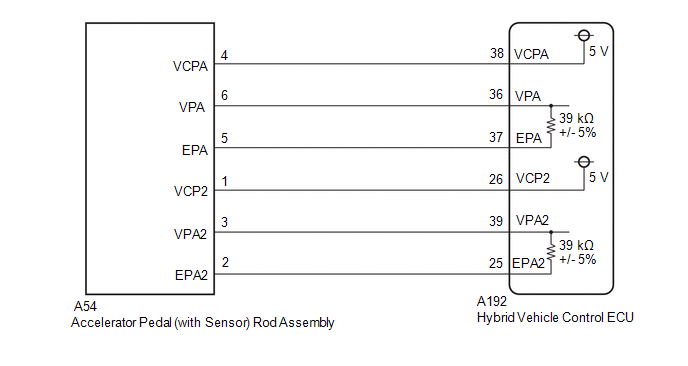

WIRING DIAGRAM

PROCEDURE

1.

READ VALUE USING GTS (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)

(a) Read the Data List.

Powertrain > Hybrid Control > Data List

Tester Display

Accelerator Position Sensor No.1 Voltage %

Accelerator Position Sensor No.2 Voltage %

Standard:

Tester Display

Accelerator Pedal Condition

Specified Condition

Accelerator Position Sensor No. 1 Voltage %

Not depressed

10 to 22%

Fully depressed

52 to 90%

Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly)

Value changes progressively

Accelerator Position Sensor No. 2 Voltage %

Not depressed

24 to 40%

Fully depressed

68 to 99%

Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly)

Value changes progressively

(b) Turn the ignition switch off.

OK

CHECK FOR INTERMITTENT PROBLEMS

NG

2.

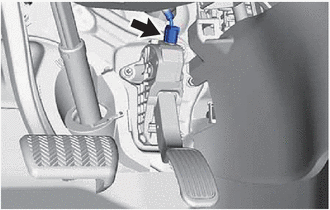

CHECK CONNECTOR CONNECTION CONDITION (ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY CONNECTOR)

(a) Check the connector connections and contact pressure of the relevant terminals for the accelerator pedal (with sensor) rod assembly connector.

Click here

OK:

The connectors are connected securely and there are no contact pressure problems.

NG

CONNECT SECURELY

OK

3.

CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

Click here

NG

CONNECT SECURELY

OK

4.

CHECK HYBRID VEHICLE CONTROL ECU (CHECK VOLTAGE)

(a) Disconnect the accelerator pedal (with sensor) rod assembly connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A54-4 (VCPA) - A54-5 (EPA)

Ignition switch ON

4.5 to 5.5 V

A54-1 (VCP2) - A54-2 (EPA2)

Ignition switch ON

4.5 to 5.5 V

(d) Turn the ignition switch off.

(e) Reconnect the accelerator pedal (with sensor) rod assembly connector.

NG

GO TO STEP 6

OK

5.

CHECK HYBRID VEHICLE CONTROL ECU (CHECK RESISTANCE)

(a) Disconnect the accelerator pedal (with sensor) rod assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A54-6 (VPA) - A54-5 (EPA)

Ignition switch off

36.60 to 41.61 kΩ

A54-3 (VPA2) - A54-2 (EPA2)

Ignition switch off

36.60 to 41.61 kΩ

(c) Reconnect the accelerator pedal (with sensor) rod assembly connector.

OK

REPLACE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

NG

GO TO STEP 7

6.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)

(a) Disconnect the hybrid vehicle control ECU connector.

(b) Disconnect the accelerator pedal (with sensor) rod assembly connector.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A192-38 (VCPA) - Body ground

Ignition switch ON

Below 1 V

A192-37 (EPA) - Body ground

Ignition switch ON

Below 1 V

A192-26 (VCP2) - Body ground

Ignition switch ON

Below 1 V

A192-25 (EPA2) - Body ground

Ignition switch ON

Below 1 V

NOTICE:

Turning the ignition switch to ON with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

(e) Turn the ignition switch off.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

A192-38 (VCPA) - A54-4 (VCPA)

Ignition switch off

Below 1 Ω

A192-37 (EPA) - A54-5 (EPA)

Ignition switch off

Below 1 Ω

A192-26 (VCP2) - A54-1 (VCP2)

Ignition switch off

Below 1 Ω

A192-25 (EPA2) - A54-2 (EPA2)

Ignition switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

A192-38 (VCPA) or A54-4 (VCPA) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-37 (EPA) or A54-5 (EPA) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-26 (VCP2) or A54-1 (VCP2) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-25 (EPA2) or A54-2 (EPA2) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

(g) Reconnect the accelerator pedal (with sensor) rod assembly connector.

(h) Reconnect the hybrid vehicle control ECU connector.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)

(a) Disconnect the hybrid vehicle control ECU connector.

(b) Disconnect the accelerator pedal (with sensor) rod assembly connector.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A192-36 (VPA) - Body ground

Ignition switch ON

Below 1 V

A192-39 (VPA2) - Body ground

Ignition switch ON

Below 1 V

A192-37 (EPA) - Body ground

Ignition switch ON

Below 1 V

A192-25 (EPA2) - Body ground

Ignition switch ON

Below 1 V

NOTICE:

Turning the ignition switch to ON with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

(e) Turn the ignition switch off.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

A192-36 (VPA) - A54-6 (VPA)

Ignition switch off

Below 1 Ω

A192-37 (EPA) - A54-5 (EPA)

Ignition switch off

Below 1 Ω

A192-39 (VPA2) - A54-3 (VPA2)

Ignition switch off

Below 1 Ω

A192-25 (EPA2) - A54-2 (EPA2)

Ignition switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

A192-36 (VPA) or A54-6 (VPA) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-37 (EPA) or A54-5 (EPA) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-39 (VPA2) or A54-3 (VPA2) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

A192-25 (EPA2) or A54-2 (EPA2) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

(g) Reconnect the accelerator pedal (with sensor) rod assembly connector.

(h) Reconnect the hybrid vehicle control ECU connector.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

    READ NEXT:

     IG2 Signal Circuit Short to Auxiliary Battery (P253012)

    DESCRIPTION The hybrid vehicle control ECU compares the IGP signal to the IG control status signal sent from the certification ECU (smart key ECU assembly) to detect a stuck on malfunction of the IGP

     Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open (P253314)

    DTC SUMMARY The hybrid vehicle control ECU stores a DTC when there is no auxiliary battery voltage to the IGR terminal even though there is auxiliary battery voltage to the IGP terminal. DESCRIPTION

     Lost Communication with Airbag System Control Module Circuit Short to Ground (P310711)

    DESCRIPTION The hybrid vehicle control ECU detects a problem in the collision signal line from the airbag ECU assembly and alerts the driver. DTC No. Detection Item DTC Detection Condit

    SEE MORE:

     Data List / Active Test

    DATA LIST / ACTIVE TEST READ DATA LIST NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not. HINT: Using the GTS to read the Data List allows the va

     Engine (ignition) switch (vehicles without a smart key system)

    Starting the engine 1. Check that the parking brake is set. 2. Check that the shift lever is in P. Do not press the shift lever button after shifting the shit position to P. 3. Firmly depress the brake pedal. 4. Turn the engine switch to START to start the engine. ■If the engine does not start

    © 2020-2024 Copyright www.tcorollacross.com
